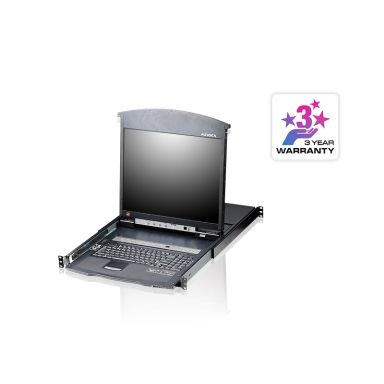

ATEN KL1508AM-AXA-EE KVM switch Rack mounting Black
In Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
Console USB ports quantity
2
Console ports
PS/2, USB A, VGA (D-Sub)
USB connector type
USB Type-A
Number of computers controlled
8
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
PS/2 ports quantity
2
Ethernet LAN (RJ-45) ports
8
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
8
Performance
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
1,255 s
Technical details
Product colour
Black
Rack mounting
Yes
Scan interval
1,255 s
Push button
Yes
On Screen Display (OSD)
Yes
LED indicators
Yes
Hot keys
Yes
Design
Product colour
Black
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Rack capacity
1U
Housing material
Metal
Display
Built-in display
Yes
Display
LCD
On Screen Display (OSD)
Yes
Display diagonal
43.2 cm (17")
Power
Input current
1 A
Power source
AC
AC input frequency
50 - 60 Hz
Input voltage
100 - 240 V
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
480 mm
Depth
701.2 mm
Height
44 mm
Weight
15.5 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
ATEN KL1508AM-AXA-EE KVM switch Rack mounting Black
| Length | 70.12 cm |
| Width | 48.00 cm |
| Height | 4.40 cm |
| Weight | 15.50 kgs |
