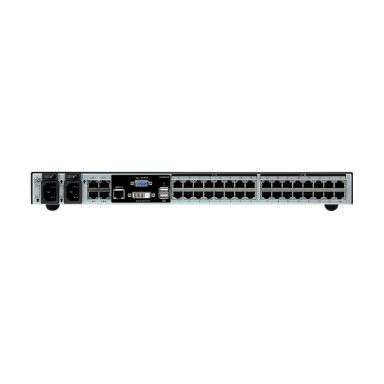

Aten Kn1132v-Ax-E Kvm Switch Rack Mounting
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Product colour
Black- Grey
Rack mounting
Yes
Scan interval
1-255 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
USB hub
Yes
Cascadable
Yes
Sustainability certificates
RoHS
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
DVI-D- RJâ45- USB A- VGA (D-Sub)
USB connector type
Mini-USB B- USB Type-A
Number of microphone inputs
1
Serial ports quantity
1
Serial port type
RJ-45
Number of computers controlled
32
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-D/VGA
Audio connections
Yes
VGA (D-Sub) ports quantity
1
Headphone outputs
1
Ethernet LAN (RJ-45) ports
36
DVI-D ports quantity
1
USB hub
Yes
USB 2.0 Type-A hub ports quantity
3
Network
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN (RJ-45) ports
36
Performance
Firmware upgradeable
Yes
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
1-255 s
Design
Product colour
Black- Grey
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Cascadable
Yes
Rack capacity
1U
Housing material
Metal
Display
Built-in display
No
Power
Input current
1 A
Power source
AC
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
26.5 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Sustainability
Sustainability certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
433.6 mm
Depth
412.1 mm
Height
44 mm
Weight
6.13 kg
Packaging content
Rack mount kit
Yes
Cables included
AC
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
Aten Kn1132v-Ax-E Kvm Switch Rack Mounting
