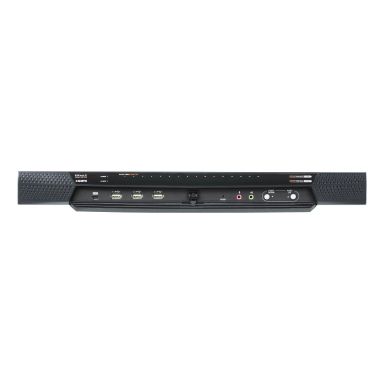

ATEN 16 Port KVM over IP switch, 2 IP users 1 Local User

Console USB ports quantity

2

Console ports

HDMI, VGA (D-Sub)

Display connection

Yes

USB connector type

USB Type-A

Serial ports quantity

1

Serial port type

RJ-45

Number of computers controlled

16

Keyboard port type

USB

Mouse port type

USB

Audio connections

Yes

Headphone outputs

1

DC-in jack

No

USB 2.0 Type-A hub ports quantity

3

Console HDMI ports quantity

1

Console RJ-45 ports quantity

16

AC-in ports quantity

2

Ethernet LAN (RJ-45) ports

2

Ethernet LAN

Yes

Cabling technology

10/100/1000Base-T(X)

Ethernet LAN (RJ-45) ports

2

HD type

Full HD

Maximum resolution

1920 x 1200 pixels

Number of users

3 user(s)

Audio channels

2.0

Product colour

Black

Rack mounting

Yes

Push button

No

Number of users

3 user(s)

LED indicators

Operation, Power, WAN

Hot keys

Yes

IP control

Yes

Display connection

Yes

Cascadable

Yes

Warranty period

3 year(s)

Display switch button

Yes

Product colour

Black

Rack mounting

Yes

Push button

No

LED indicators

Operation, Power, WAN

Hot keys

Yes

Cascadable

Yes

Rack capacity

1U

Housing material

Metal

Country of origin

Taiwan

Built-in display

No

Power plug type

Type G

Power source

AC

External power adapter

Yes

Input voltage

100 - 240 V

HD type

Full HD

Maximum resolution

1920 x 1200 pixels

Waste Electrical and Electronic Equipment (WEEE) compliance

Yes

Country of origin

Taiwan

Waste Electrical and Electronic Equipment (WEEE) compliance

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

433.6 mm

Depth

412.1 mm

Height

440 mm

Weight

5.18 kg

Rubber feet

Yes

Rack mount kit

Yes

Quick installation guide

Yes

AC adapter included

Yes

Connectivity technology

Wired

IP control

Yes

Warranty period

3 year(s)

Push button

No

Hot keys

Yes

Country of origin

Taiwan
