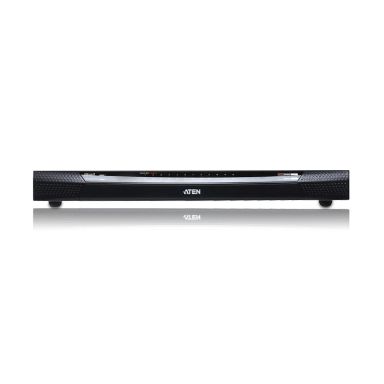

Aten KN2124VA KVM switch Rack mounting Black, Grey
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Product colour
Black- Grey
Rack mounting
Yes
Scan interval
1-255 s
Push button
Yes
Number of users
64 user(s)
LED indicators
Yes
Hot keys
Yes
USB version
2.0
Cascadable
Yes
Sustainability certificates
RoHS
Performance
Security algorithms
3DES- 128-bit RC4- 256-bit AES- DES- FIPS 140-2
Firmware upgradeable
Yes
Data transfer rate (max)
1000 Gbit/s
HD type
Full HD
Maximum resolution
1920 x 1200 pixels
Scan interval
1-255 s
Number of users
64 user(s)
Maximum digital resolution
1920 x 1200 pixels
Video
HD type
Full HD
Maximum resolution
1920 x 1200 pixels
Maximum digital resolution
1920 x 1200 pixels
Ports & interfaces
Console USB ports quantity
3
Console ports
DVI-I- USB A
USB version
2.0
USB connector type
USB Type-A
Number of computers controlled
24
Keyboard port type
USB- PS/2
Mouse port type
USB- PS/2
Video port type
DVI-I
Audio connections
Yes
USB 2.0 ports quantity
3
Ethernet LAN (RJ-45) ports
2
DVI-I ports quantity
1
DC-in jack
No
Network
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Security algorithms
3DES- 128-bit RC4- 256-bit AES- DES- FIPS 140-2
Networking standards
IEEE 802.3- IEEE 802.3ab- IEEE 802.3u
Ethernet LAN (RJ-45) ports
2
Design
Wired remote switch
Yes
Product colour
Black- Grey
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Cascadable
Yes
Rack capacity
1U
Housing material
Metal
Display
Built-in display
No
Power
Input current
1 A
Power source
AC
AC input voltage
100 - 240 V
AC input frequency
50 / 60 Hz
External power adapter
No
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Security
Security algorithms
3DES- 128-bit RC4- 256-bit AES- DES- FIPS 140-2
Sustainability
Sustainability certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
433.6 mm
Depth
412.1 mm
Height
44 mm
Weight
5.48 kg
Packaging content
Cables included
AC
Manual
Yes
AC adapter included
No
Other features
Push button
Yes
Hot keys
Yes
Aten KN2124VA KVM switch Rack mounting Black, Grey
