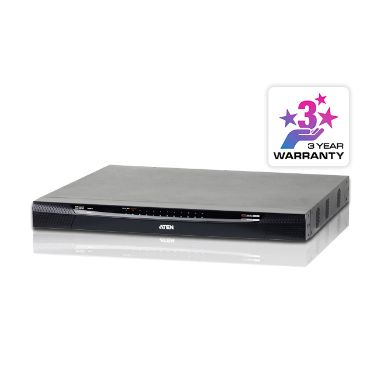

ATEN KN2124VA-AX-E KVM switch Rack mounting Black, Grey
In Stock
|
$4688.37
$5626.04 (Inc. VAT)
Technical details
Product colour
Black- Grey
Rack mounting
Yes
Scan interval
1-255 s
Push button
Yes
Number of users
64 user(s)
LED indicators
Yes
Hot keys
Yes
USB hub
Yes
Cascadable
Yes
Performance
Security algorithms
3DES- 128-bit RC4- 256-bit AES- DES- FIPS 140-2
Firmware upgradeable
Yes
Data transfer rate (max)
1000 Gbit/s
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
1-255 s
Number of users
64 user(s)
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
DVI-I- USB A
USB connector type
USB Type-A
Number of computers controlled
24
Keyboard port type
USB- PS/2
Mouse port type
USB- PS/2
Video port type
DVI-I
Audio connections
Yes
Ethernet LAN (RJ-45) ports
26
DVI-I ports quantity
1
DC-in jack
No
USB hub
Yes
USB 2.0 Type-A hub ports quantity
3
Network
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Security algorithms
3DES- 128-bit RC4- 256-bit AES- DES- FIPS 140-2
Networking standards
IEEE 802.3- IEEE 802.3ab- IEEE 802.3u
Ethernet LAN (RJ-45) ports
26
Design
Wired remote switch
Yes
Product colour
Black- Grey
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Cascadable
Yes
Rack capacity
1U
Housing material
Metal
Display
Built-in display
No
Power
Input current
1 A
Power source
AC
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
External power adapter
No
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Security
Security algorithms
3DES- 128-bit RC4- 256-bit AES- DES- FIPS 140-2
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
433.6 mm
Depth
412.1 mm
Height
44 mm
Weight
6.21 kg
Packaging content
Cables included
AC
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
ATEN KN2124VA-AX-E KVM switch Rack mounting Black, Grey
