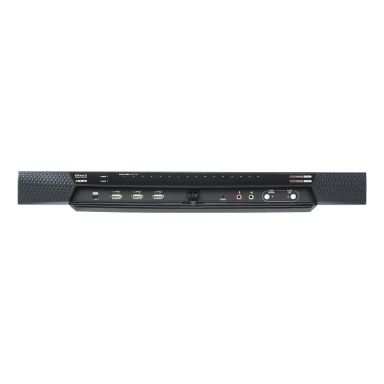

ATEN KN4016VB KVM switch Black
In Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
Console USB ports quantity
2
Console ports
HDMI, Mini-USB B, USB A, VGA (D-Sub)
USB connector type
Mini-USB B, USB Type-A
Serial ports quantity
1
Serial port type
RJ-45
Number of computers controlled
16
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
HDMI/VGA
Audio connections
Yes
VGA (D-Sub) ports quantity
1
USB hub
Yes
USB 2.0 Type-A hub ports quantity
3
Console HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
20
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
20
Performance
Firmware upgradeable
Yes
HD type
Full HD+
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
1,255 s
Technical details
Product colour
Black
Scan interval
1,255 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
USB hub
Yes
Cascadable
Yes
Design
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Cascadable
Yes
Housing material
Metal
Display
Built-in display
No
Power
Input current
1 A
Power source
AC
AC input frequency
50/60 Hz
Power consumption (typical)
44 W
Input voltage
100 - 240 V
Video
HD type
Full HD+
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
412.1 mm
Depth
433.6 mm
Height
44 mm
Weight
5.19 kg
Packaging content
Quick installation guide
Yes
Other features
Push button
Yes
Hot keys
Yes
ATEN KN4016VB KVM switch Black
| Length | 43.36 cm |
| Width | 41.21 cm |
| Height | 4.4 cm |
| Weight | 5.19 kgs |
