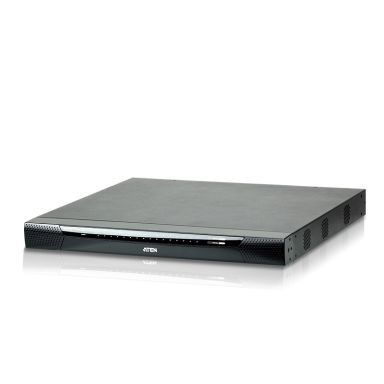

ATEN KN4116VA-AX-E KVM switch Rack mounting Grey
In Stock
|
$6003.95
$7204.74 (Inc. VAT)
Ports & interfaces
Console USB ports quantity
2
Console ports
DVI-D, RJ45, USB A, VGA (D-Sub)
USB connector type
Mini-USB, USB Type-A
Number of microphone inputs
1
Serial ports quantity
1
Serial port type
RJ-45
Number of computers controlled
16
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-D/VGA
Audio connections
Yes
VGA (D-Sub) ports quantity
1
Headphone outputs
1
DVI-D ports quantity
1
DC-in jack
Yes
USB hub
Yes
USB 2.0 Type-A hub ports quantity
3
Ethernet LAN (RJ-45) ports
20
Network
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN (RJ-45) ports
20
Performance
Auto scan delay (min)
1 s
Auto scan delay (max)
255 s
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
1,255 s
Technical details
Product colour
Grey
Rack mounting
Yes
Scan interval
1,255 s
Push button
Yes
LED indicators
Yes
USB hub
Yes
Cascadable
Yes
Design
Product colour
Grey
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Cascadable
Yes
Rack capacity
1U
Housing material
Metal
Display
Built-in display
No
Power
Input current
1 A
Power source
AC
AC input frequency
50 - 60 Hz
Input voltage
100 - 240 V
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
433.6 mm
Depth
412.1 mm
Height
44 mm
Weight
6.63 kg
Packaging content
Rack mount kit
Yes
Cables included
AC
Manual
Yes
Other features
Push button
Yes
ATEN KN4116VA-AX-E KVM switch Rack mounting Grey
