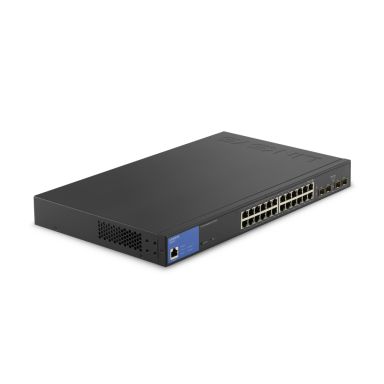

Linksys 24 Port Gigabit Managed Network Switch with 4 x 1Gb Uplink SFP Slots
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L3
Network
IGMP snooping
Yes
IPv6 FIB entries
21
IPv4 FIB entries
63
Networking standards
IEEE 802.1Q, IEEE 802.1p
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
256
Link aggregation
Yes
Broadcast storm control
Yes
10G support
No
Virtual LAN features
Port-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
256
Virtual LAN features
Port-based VLAN
Data transmission
Number of VLANs
256
Jumbo frames
10000
MAC address table
8000 entries
Switching capacity
56 Gbit/s
Jumbo frames support
Yes
Forwarding rate
41.66 Mpps
IPv4 & IPv6 features
IPv6 FIB entries
21
IPv4 FIB entries
63
Performance
Stackable
Yes
Memory type
DRAM
Internal memory
250 MB
Firmware upgradeable
Yes
Harmonized System (HS) code
85176990
Technical details
Product colour
Black, Blue
Stackable
Yes
Housing material
Metal
Firmware upgradeable
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
Authentication
Guest VLAN
Static port security
Yes
SSH/SSL support
Yes
Security algorithms
HTTPS, SNMP
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
RADIUS
DHCP features
DHCP client, DHCP relay, DHCP snooping
Multicast features
Multicast support
Yes
Protocols
Management protocols
HTTP, HTTPS
IPv6 FIB entries
21
IPv4 FIB entries
63
Memory
Memory type
DRAM
Internal memory
250 MB
Design
Country of origin
Taiwan
Product colour
Black, Blue
Stackable
Yes
LED indicators
Fault, Power
Housing material
Metal
Indication
LED indicators
Fault, Power
Power
Power consumption (max)
305.24 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
4 A
Power source
AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
250 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
Active PoE
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
433.8 mm
Depth
253.5 mm
Height
44.7 mm
Weight
3.94 kg
Packaging data
Package type
Box
Package width
522 mm
Package depth
364.5 mm
Package height
99.1 mm
Package weight
4.55 kg
Logistics data
Master (outer) case width
541.8 mm
Master (outer) case length
332 mm
Master (outer) case height
392.2 mm
Master (outer) case gross weight
14.6 kg
Products per master (outer) case
3 pc(s)
Harmonized System (HS) code
85176990
Other features
Country of origin
Taiwan
Linksys 24 Port Gigabit Managed Network Switch with 4 x 1Gb Uplink SFP Slots
