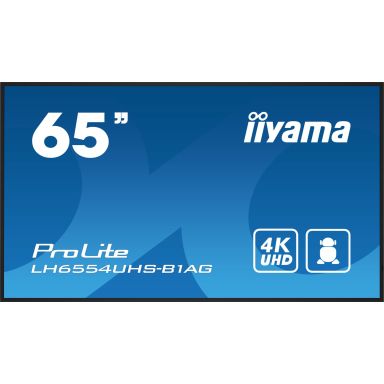

iiyama LH6554UHS-B1AG Signage Display Digital signage flat panel 165.1 cm (65") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
In Stock
|
Call For Price
(0808 189 1246)
Display
Panel type
IPS
Display number of colours
1.07 billion colours
Touchscreen
No
Display technology
LCD
Display diagonal
165.1 cm (65")
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.372 x 0.372 mm
Native aspect ratio
16:9
Horizontal scan range
28 - 160 kHz
Colour saturation
75%
Native refresh rate
60 Hz
Haze rate
25%
RGB colour space
NTSC
Ports & interfaces
DisplayPorts out
1
USB port
Yes
DisplayPorts in
1
HDMI version
2.0
RS-232C
Yes
Infrared data port
Yes
Wi-Fi
Yes
DisplayPorts quantity
2
Ethernet LAN
Yes
HDMI ports quantity
3
DVI port
Yes
DVI-I ports quantity
1
VGA (D-Sub) input ports
1
Ethernet LAN (RJ-45) ports
1
USB version
2.0
USB ports quantity
2
HDMI output ports quantity
3
Audio
Number of built-in speakers
2
RMS rated power
20 W
Built-in speaker(s)
Yes
Design
Product design
Digital signage flat panel
Orientation
Horizontal/Vertical
Product colour
Black
Panel mounting interface
400 x 400 mm
VESA mounting
Yes
Screen shape
Flat
Performance
Purpose
Commercial
Operating hours (hours/days)
24/7
Mean time between failures (MTBF)
50000 h
HDCP
Yes
HDCP version
2.2
Wi-Fi
Yes
Power
Power consumption (off)
0.5 W
Power consumption (typical)
191 W
Power consumption (standby)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50 Hz
Energy efficiency scale
A to G
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
191 kWh
Computer system
Processor cores
4
Operating system installed
Android 11
Internal memory
4 GB
Internal storage capacity
32 GB
Processor manufacturer
ARM
Built-in processor
Yes
On-board graphics card model
ARM Mali-G52
Processor architecture
ARM Cortex-A53+Cortex-A73
Weight & dimensions
Display width
1463 mm
Display depth
73 mm
Display height
838 mm
Display weight
22.3 kg
Packaging data
Package width
1615 mm
Package depth
182 mm
Package height
1000 mm
Package weight
31 kg
Cables included
HDMI, Power, RS-232
Packaging content
Cables included
HDMI, Power, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Technical details
VESA mounting
Yes
Panel type
IPS
DisplayPorts out
1
DisplayPorts in
1
Thin Client
Operating system installed
Android 11
Internal memory
4 GB
Internal storage capacity
32 GB
Other features
Panel type
IPS
DisplayPorts out
1
DisplayPorts in
1
Wi-Fi
Yes
Mean time between failures (MTBF)
50000 h
Display technology
LCD
Energy efficiency scale
A to G
iiyama LH6554UHS-B1AG Signage Display Digital signage flat panel 165.1 cm (65") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
