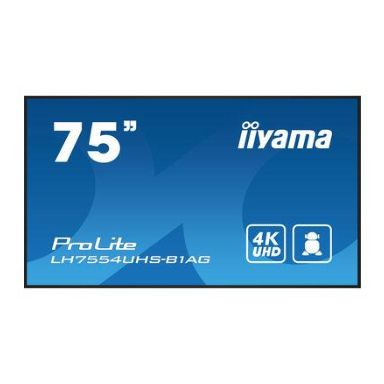

iiyama 75” LH7554UHS-B1AG Display
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Display | |
|---|---|
| Panel type | IPS |
| Display number of colours | 1.07 billion colours |
| Touchscreen | No |
| Active display area (W x H) | 1650 x 928 mm |
| Display technology | LCD |
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle- horizontal | 178° |
| Viewing angle- vertical | 178° |
| Display diagonal (metric) | 189.3 cm |
| Horizontal scan range | 28 - 160 kHz |
| Maximum frame rate | 60 fps |
| Haze rate | 25% |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| USB port | Yes |
| HDMI version | 2.0 |
| RS-232C | Yes |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| DVI port | Yes |
| DVI-I ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| USB ports quantity | 2 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Performance | |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese- Czech- German- Dutch- English- Spanish- French- Italian- Japanese- Polish- Russian |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| HDCP version | 2.0 |
| Wi-Fi | Yes |
| Power | |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 236 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 236 kWh |
| Computer system | |
| Processor cores | 4 |
| Operating system installed | Android 11 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Weight & dimensions | |
| Display width | 1683.5 mm |
| Display depth | 85 mm |
| Display height | 961.5 mm |
| Display weight | 29.6 kg |
| Packaging data | |
| Package weight | 42 kg |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | HDMI- Power- RS-232 |
| Packaging content | |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | HDMI- Power- RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| VESA mounting | Yes |
| Panel type | IPS |
| Thin Client | |
| Operating system installed | Android 11 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Other features | |
| Panel type | IPS |
| Wi-Fi | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Energy efficiency scale | A to G |
