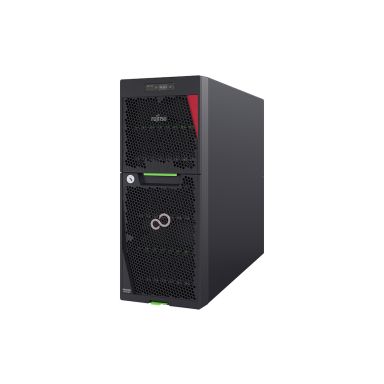

Fujitsu PRIMERGY TX1330 M5 server Tower Intel Xeon E E-2388G 3.2 GHz 32 GB DDR4-SDRAM 500 W

Processor cache

16 MB

Processor frequency

3.2 GHz

Processor boost frequency

4.6 GHz

Number of processors installed

1

Processor model

E-2388G

Processor cores

8

Processor manufacturer

Intel

Motherboard chipset

Intel C256

Maximum number of SMP processors

1

Processor family

Intel Xeon E

Internal memory

32 GB

Memory layout (slots x size)

1 x 32 GB

Memory slots

4x DIMM

Memory clock speed

3200 MHz

Maximum internal memory

128 GB

Internal memory type

DDR4-SDRAM

ECC

Yes

Supported HDD sizes

2.5"

RAID support

Yes

Optical drive type

No

Hot-Plug support

Yes

LAN controller

Intel I210

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Cabling technology

10/100/1000Base-T(X)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Total number of SATA connectors

7

VGA (D-Sub) ports quantity

1

USB 2.0 ports quantity

4

Ethernet LAN (RJ-45) ports

3

DisplayPorts quantity

1

PCI Express x4 (Gen 3.x) slots

2

PCI slots

1

PCI Express x8 (Gen 4.x) slots

2

Optical drive type

No

Redundant fans support

Yes

Rack mounting

Yes

Optical drive type

No

Chassis type

Tower

Product colour

Black

Compatible operating systems

Windows Server 2022 Datacenter, Windows Server 2022 Standard, Windows Server 2022 Essentials, Windows Server 2019 Datacenter, Windows Server 2019 Standard, Windows Server 2019 Essentials, VMware vSphere 7.0, Red Hat Enterprise Linux 8, Univention Corporate Server 4

Noise level

22 dB

Trusted Platform Module (TPM) version

2.0

Trusted Platform Module (TPM)

Yes

Operating system installed

No

Compatible operating systems

Windows Server 2022 Datacenter, Windows Server 2022 Standard, Windows Server 2022 Essentials, Windows Server 2019 Datacenter, Windows Server 2019 Standard, Windows Server 2019 Essentials, VMware vSphere 7.0, Red Hat Enterprise Linux 8, Univention Corporate Server 4

Operating system installed

No

Redundant power supply (RPS) support

Yes

Power supply input frequency

50 / 60 Hz

Power supply

500 W

Power supply input voltage

100 - 240 V

Operating relative humidity (H-H)

10 - 85%

Operating temperature (T-T)

5 - 45 °C

Certification

CB, GS, CE, NRTLc/us, FCC, ICES-003, NMB-003, VCCI, JIS 61000-3-2, EAC, KC, CCC, RCM, BSMI

Sustainability compliance

Yes

Noise level

22 dB

Trusted Platform Module (TPM) version

2.0

Trusted Platform Module (TPM)

Yes

Supported HDD sizes

2.5"

Redundant fans support

Yes

Rack mounting

Yes

Hot-Plug support

Yes

Ethernet interface type

Gigabit Ethernet

Chassis type

Tower

Sustainability compliance

Yes

Compliance certificates

RoHS, WEEE

Width

177.2 mm

Weight

26.4 kg

Height

456.2 mm

Depth

521.7 mm
