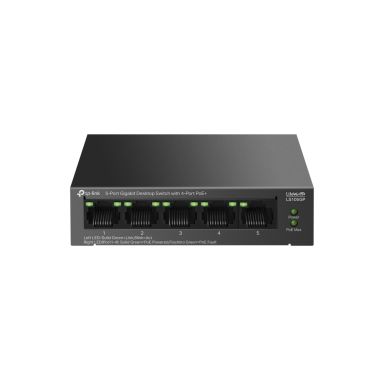

TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+
In Stock
|
$40.58
$48.70 (Inc. VAT)
Network
IGMP snooping
Yes
Cable types supported
Cat3, Cat5e, Cat4, Cat5
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Performance
Auto-negotiation
Yes
Technical details
Product colour
Black
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Data transmission
Jumbo frames
16000
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Store-and-forward
Yes
Forwarding rate
7.44 Mpps
Security
IGMP snooping
Yes
Certificates
Certification
CE, FCC, RoHS
Design
Product colour
Black
LED indicators
Yes
Certification
CE, FCC, RoHS
Indication
LED indicators
Yes
Power
Power consumption (max)
74.46 W
Power supply included
Yes
AC input voltage
220 V
AC input frequency
50 Hz
DC input voltage
53.5 V
Power source
DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
65 W
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
253.16 BTU/h
Weight & dimensions
Width
99.8 mm
Depth
98 mm
Height
25 mm
Packaging data
Package type
Box
User guide
Yes
Packaging content
User guide
Yes
TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+
