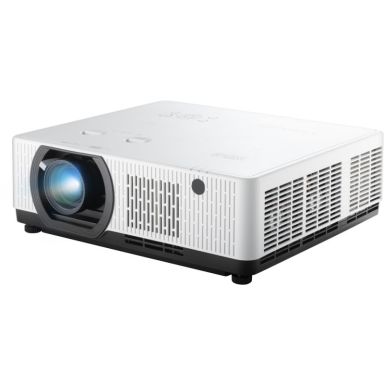

Viewsonic LSC801WU data projector Standard throw projector 8000 ANSI lumens 3LCD WUXGA (1920x1200) White
In Stock
|
£2153.69
£2584.43 (Inc. VAT)
get it next day (UK Mainland Orders)
Viewsonic LSC801WU data projector Standard throw projector 8000 ANSI lumens 3LCD WUXGA (1920x1200) White
Write Your Own Review
Projector
Number of colours
1.07 billion colours
Projector native resolution
WUXGA (1920x1200)
Native aspect ratio
21:9
Screen size compatibility
762 - 7620 mm (30 - 300")
Projection distance
0.78 - 12.99 m
Contrast ratio (typical)
3000000:1
Zoom capability
Yes
Vertical synchronization (min)
0.023 kHz
Vertical synchronization (max)
0.085 kHz
Matrix type
MLA
Matrix size
1.63 cm (0.64")
Keystone correction, vertical
+-30°
Keystone correction, horizontal
+-25°
Horizontal synchronization (min)
15 kHz
Horizontal synchronization (max)
100 kHz
Projection technology
3LCD
Projector brightness
8000 ANSI lumens
Smart projector
No
Screen size (max)
7.62 m (300")
Lamps
Light source type
Laser
Service life of light source
20000 h
Service life of light source (economic mode)
30000 h
Light source
Light source type
Laser
Service life of light source
20000 h
Service life of light source (economic mode)
30000 h
Light source brightness
8500 lm
Lens system
Zoom capability
Yes
Focal length range
17.2 - 27.7 mm
Aperture range (F-F)
1.5 - 2.08
Horizontal lens shift range
-29 - 29%
Vertical lens shift range
0 - 60%
Throw ratio
1.2 - 2
Optical zoom
1.6x
Offset
0%
Digital zoom
4x
Video
Full HD
Yes
3D
No
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Supported graphics resolutions
640 x 480 (VGA), 3840 x 2160
Audio
Built-in speaker(s)
Yes
RMS rated power
16 W
Ports & interfaces
HDMI connector type
Full-size
USB 2.0 Type-B ports quantity
1
PC in (D-Sub)
Yes
HDMI version
1.4
VGA (D-Sub) ports quantity
2
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
2
Composite video in
0
Audio (L/R) in
0
Serial interface type
RS-232
PC Audio out
Yes
PC Audio in
Yes
DVI port
No
Component video (YPbPr/YCbCr) in
0
AC (power) in
Yes
USB 2.0 Type-A ports quantity
1
Network
Smart TV
No
Ethernet LAN
Yes
Wi-Fi
No
Ethernet LAN (RJ-45) ports
2
Storage
Card reader integrated
No
Sound emission
Noise level
37 dB
Noise level (economic mode)
27 dB
Technical details
PC in (D-Sub)
Yes
Product colour
White
HDCP
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Multi
Air filter
Yes
Quantity per pack
1 pc(s)
Pallet gross width
120 cm
Pallet gross length
100 cm
Pallet gross height
170 cm
Products per master (outer) case
1 pc(s)
Image lag time
60 ms
Performance
HDCP
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Multi
Noise level
37 dB
Noise level (economic mode)
27 dB
Air filter
Yes
Features
HDCP
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Multi
Noise level
37 dB
Noise level (economic mode)
27 dB
Air filter
Yes
HDCP version
1.4
Multimedia
Built-in speaker(s)
Yes
RMS rated power
16 W
Design
Product type
Standard throw projector
Product colour
White
Display
Built-in display
No
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power consumption (typical)
385 W
Power consumption (standby)
0.5 W
Packaging data
Package width
510 mm
Package depth
498 mm
Package height
260 mm
Package weight
10.9 kg
Supplier features
Harmonized System (HS) code
8528620000
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Package width
510 mm
Package depth
498 mm
Package height
260 mm
Weight
7.9 kg
Width
405 mm
Depth
358 mm
Height
137 mm
Package weight
10.9 kg
Packaging content
Remote control included
Yes
Cables included
AC
Logistics data
Quantity per pack
1 pc(s)
Pallet gross width
120 cm
Pallet gross length
100 cm
Pallet gross height
170 cm
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
8528620000
| Length | 49.8 cm |
| Width | 51 cm |
| Height | 26 cm |
| Weight | 10.90 kgs |
