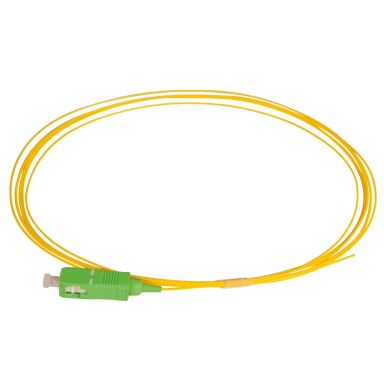

Lanview LVO231396 fibre optic cable 2 m SC OS2 Yellow
In Stock
|
Call For Price (0808 189 1246)
Technical details
Jacket material
Polyvinyl chloride (PVC)
Fiber mode structure
Single-mode
Connector 1
SC
Connector 2
No
Cable length
2 m
Core diameter
9 µm
Cladding diameter
125 µm
Connector(s)
SC
Insertion loss
0.3 dB
Compliance certificates
RoHS
Features
Fibre optic type
OS2
Return loss
50 dB
Jacket material
Polyvinyl chloride (PVC)
Fiber mode structure
Single-mode
Connector 1
SC
Connector 2
No
Cable length
2 m
Core diameter
9 µm
Cladding diameter
125 µm
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Insertion loss
0.3 dB
Certification
ISO 9001, UL, GR-326-Core, IEC 61755, IEC61300
Harmonized System (HS) code
85447000
Product colour
Yellow
Connector 2 gender
No
Connector 1 gender
Male
Connector polish type
APC
Certificates
Certification
ISO 9001, UL, GR-326-Core, IEC 61755, IEC61300
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Weight & dimensions
Cable length
2 m
Package width
150 mm
Package depth
60 mm
Package height
150 mm
Cable diameter
0.9 mm
Weight
9.4 g
Package weight
10 g
Packaging data
Package width
150 mm
Package depth
60 mm
Package height
150 mm
Package weight
10 g
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
85447000
Quantity per pack
1 pc(s)
Other features
Connector(s)
SC
Lanview LVO231396 fibre optic cable 2 m SC OS2 Yellow
| Length | 6 cm |
| Width | 15 cm |
| Height | 15 cm |
| Weight | 0.01 kgs |
