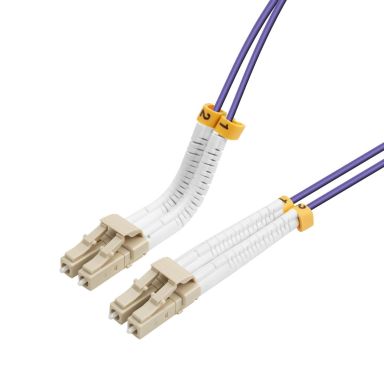

Lanview LVO231818-FLEX InfiniBand/fibre optic cable 5 m LC LC/LC Purple
In Stock
|
Call For Price (0808 189 1246)
Technical details
Jacket material
Low smoke zero halogen (LSZH)
Fiber mode structure
Multi-mode
Connector 1
LC
Connector 2
LC
Cable type
LC/LC
Cable length
5 m
Full duplex
Yes
Core diameter
50 µm
Cladding diameter
125 µm
Insertion loss
0.3 dB
Doesn't contain
Halogen
Warranty period
25 year(s)
Compliance certificates
REACH, RoHS
Features
Compressive strength
10
Bending radius
3 cm
Fibre optic type
OM4
Return loss
50 dB
Jacket material
Low smoke zero halogen (LSZH)
Fiber mode structure
Multi-mode
Connector 1
LC
Connector 2
LC
Cable type
LC/LC
Cable length
5 m
Full duplex
Yes
Core diameter
50 µm
Cladding diameter
125 µm
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Insertion loss
0.3 dB
Wavelengths supported
850,953,1260,1280,1300 nm
Product colour
Purple
Connector 2 gender
Male
Connector 1 gender
Male
Connector polish type
UPC
Plug and Play
Yes
Cable shape
Round
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Weight & dimensions
Bending radius
3 cm
Cable length
5 m
Package width
200 mm
Package depth
50 mm
Package height
250 mm
Cable diameter
2 mm
Weight
100 g
Package weight
100 g
Packaging data
Package width
200 mm
Package depth
50 mm
Package height
250 mm
Package weight
100 g
Lanview LVO231818-FLEX InfiniBand/fibre optic cable 5 m LC LC/LC Purple
| Length | 5 cm |
| Width | 20 cm |
| Height | 25 cm |
| Weight | 0.10 kgs |
