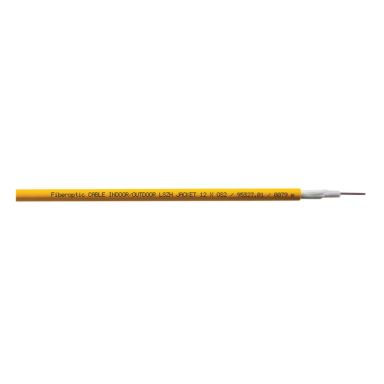

Lanview LVO232550-100 fibre optic cable 100 m OS2 Yellow
In Stock
|
$91.03
$109.24 (Inc. VAT)
Technical details
Jacket material
Low smoke zero halogen (LSZH)
Connector 1
No
Connector 2
No
Cable length
100 m
Core diameter
9 µm
Cladding diameter
125 µm
Tube diameter
2.8 mm
Number of optical fibres
12
Sustainability certificates
RoHS
Doesn't contain
Halogen
Compliance certificates
RoHS
Features
Compressive strength
1500
Bending radius
6 cm
Fibre optic type
OS2
Connector gender
No
Jacket material
Low smoke zero halogen (LSZH)
Connector 1
No
Connector 2
No
Cable length
100 m
Core diameter
9 µm
Cladding diameter
125 µm
Operating temperature (T-T)
-30 - 60 °C
Storage temperature (T-T)
-40 - 70 °C
Certification
ISO 11801 (2nd), EN 50173-1:2002, IEC 60794-1, IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034-2, IEC 50290-2-27
Country of origin
Spain
Wavelengths supported
1310 nm
Harmonized System (HS) code
85447000
Product colour
Yellow
Connector 2 gender
No
Connector 1 gender
No
Connector polish type
PC
Certificates
Certification
ISO 11801 (2nd), EN 50173-1:2002, IEC 60794-1, IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034-2, IEC 50290-2-27
Operational conditions
Operating temperature (T-T)
-30 - 60 °C
Storage temperature (T-T)
-40 - 70 °C
Weight & dimensions
Cable weight
40 kg/km
Bending radius
6 cm
Cable length
100 m
Cable diameter
6 mm
Weight
3.9 kg
Package weight
4 kg
Packaging data
Package weight
4 kg
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
85447000
Quantity per pack
1 pc(s)
Other features
Tube diameter
2.8 mm
Number of optical fibres
12
