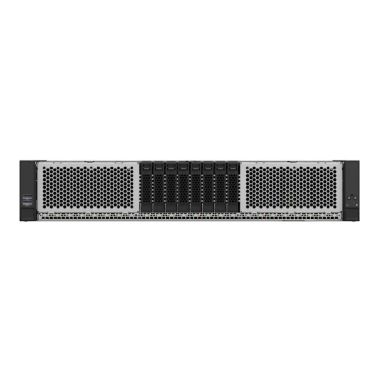

Intel Server System M50CYP2UR208 Intel C621A LGA 4189 Rack (2U)
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
0- 1- 5- 10
Hot-swap HDD bays
Yes
Processor
Built-in processor
No
Processor socket
LGA 4189
Number of processors supported
2
Motherboard chipset
Intel C621A
Processor manufacturer
Intel
Memory
Supported memory types
DDR4-SDRAM
Number of DIMM slots
32
Maximum internal memory
12000 GB
Storage
Number of storage drives supported
8
RAID levels
0- 1- 5- 10
Hot-swap HDD bays
Yes
Performance
Intel Advanced Management Technology
Yes
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Intel Remote Management Module Support
Yes
Intel Intelligent Power Node Manager
Yes
Integrated BMC with IPMI
Yes
Graphics
On-board graphics card model
Aspeed AST2500
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB ports quantity
6
USB 2.0 ports quantity
1
Serial ports quantity
2
Number of SATA connectors
10
Number of SAS ports
8
Features
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Integrated BMC with IPMI
Yes
Harmonized System (HS) code
8473301180
Export Control Classification Number (ECCN)
5A002U
Commodity Classification Automated Tracking System (CCATS)
G157815L1
Technical details
USB ports quantity
6
Number of storage drives supported
8
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Advanced Management Technology
Yes
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Redundant fans support
Yes
Rack-Friendly board
Yes
Rack rails
No
Intel Remote Management Module Support
Yes
Intel Intelligent Power Node Manager
Yes
Integrated BMC with IPMI
Yes
CPU configuration (max)
2
Chassis type
Rack (2U)
Target market
Mainstream
Supported RAID configuration
0/1/5/10
Status
Launched
Riser slot 2 number of lanes
32
Riser slot 1 number of lanes
32
Launch date
Q2'21
Extended warranty available for purchase (select countries)
Yes
Riser slot 3 number of lanes
16
Harmonized System (HS) code
8473301180
Export Control Classification Number (ECCN)
5A002U
Commodity Classification Automated Tracking System (CCATS)
G157815L1
Logistics data
Harmonized System (HS) code
8473301180
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Advanced Management Technology
Yes
Intel Remote Management Module Support
Yes
Intel Intelligent Power Node Manager
Yes
Intel® Optane⢠Memory Ready
Yes
Processor ARK ID
214837
Design
Redundant fans support
Yes
Rack-Friendly board
Yes
Rack rails
No
Chassis type
Rack (2U)
Power
Redundant power supply (RPS) support
Yes
Power supply type
AC
Power supply
2100 W
Thermal Design Power (TDP)
270 W
Weight & dimensions
Width
770 mm
Height
87 mm
Depth
446 mm
Other features
On-board graphics card
Yes
CPU configuration (max)
2
Target market
Mainstream
Supported RAID configuration
0/1/5/10
Status
Launched
Riser slot 2 number of lanes
32
Riser slot 1 number of lanes
32
Launch date
Q2'21
Extended warranty available for purchase (select countries)
Yes
Riser slot 3 number of lanes
16
Intel Server System M50CYP2UR208 Intel C621A LGA 4189 Rack (2U)
