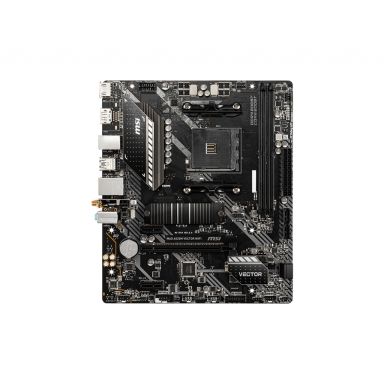

MSI MAG A520M VECTOR WIFI motherboard AMD A520 Socket AM4 micro ATX

Number of M.2 (M) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

12V power connector

Yes

Supported storage drive interfaces

SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

Serial port headers

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of Parallel ATA connectors

0

Number of chassis fan connectors

1

Front panel audio connector

Yes

CPU fan connector

Yes

Chassis intrusion connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Motherboard chipset family

AMD

Motherboard chipset

AMD A520

Serial port headers

1

HDMI version

2.1

Motherboard form factor

micro ATX

Component for

PC

Audio output channels

7.1 channels

Supported storage drive types

HDD & SSD

Motherboard chipset family

AMD

Motherboard chipset

AMD A520

RAID levels

0, 1, 5, 10

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 3000 Series

Maximum number of SMP processors

1

Processor socket

Socket AM4

Number of memory slots

2

Memory slots type

DIMM

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz

Maximum internal memory

64 GB

Unbuffered memory

Yes

ECC сompatibility

ECC & Non-ECC

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

SATA III

RAID levels

0, 1, 5, 10

Maximum graphics card memory

2048 MB

Maximum resolution

4096 x 2160 pixels

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

2

eSATA ports quantity

0

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

Firewire (IEEE 1394) ports

0

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

LAN controller

Realtek RTL8111H

Ethernet interface type

Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

4.2

Motherboard chipset family

AMD

Motherboard chipset

AMD A520

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Audio chip

Realtek ALC892

Harmonized System (HS) code

84733020

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 3.x) slots

1

Clear CMOS jumper

Yes

Maximum graphics card memory

2048 MB

Maximum resolution

4096 x 2160 pixels

Drivers included

Yes

Harmonized System (HS) code

84733020

Width

244 mm

Depth

210 mm

Drivers included

Yes

Cables included

SATA
