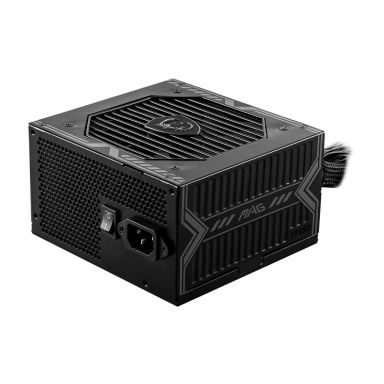

MSI MAG A750BN PCIE5 power supply unit 750 W 24-pin ATX ATX Black
In Stock
|
$72.33
$86.80 (Inc. VAT)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Bronze
Purpose
PC
Design
80 PLUS certification
80 PLUS Bronze
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Illumination
No
Cooling type
Active
Power
Total power
750 W
Maximum input current (@220V)
5 A
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power Factor Correction (PFC) type
Active
Maximum input current (@110V)
10 A
Combined power (+3.3V)
120 W
Combined power (+12V)
750 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
62.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over current, Over power, Over voltage, Short circuit
Efficiency
85%
Ports & interfaces
Motherboard power connector
24-pin ATX
Number of SATA power connectors
5
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
2
Floppy drive power connector
1
ATX Power connector (24-pin)
Yes
Cabling type
Non-Modular
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (16-pin)
1
Packaging data
Package depth
140 mm
Package width
150 mm
Package height
86 mm
Certificates
80 PLUS certification
80 PLUS Bronze
MSI MAG A750BN PCIE5 power supply unit 750 W 24-pin ATX ATX Black
