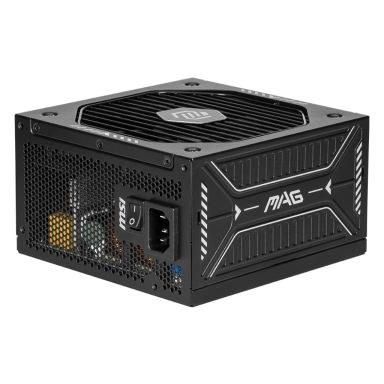

MSI MAG A750GLS PCIE5 power supply unit 750 W 24-pin ATX ATX Black

Fan diameter

13.5 cm

Number of fans

1 fan(s)

80 PLUS certification

80 PLUS Gold

Product colour

Black

Fan diameter

13.5 cm

Number of fans

1 fan(s)

Illumination

No

Total power

750 W

Peak power

1650 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

100 W

Combined power (+12V)

750 W

Combined power (+5V)

100 W

Combined power (-12V)

750 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

18 A

Power protection features

No load operation, Over power, Over total voltage, Over voltage, Overcharge, Short circuit, Surge & inrush protection (SIP), Under voltage

Efficiency

90%

Motherboard power connector

24-pin ATX

Number of SATA power connectors

5

Peripheral (Molex) power connectors (4-pin)

2

EPS power connector (8-pin)

No

PCI Express power connectors (6+2 pin)

4

PCI Express connector

Yes

ATX Power connector (24-pin)

Yes

Cabling type

Fully-Modular

EPS power connector (4+4 pin)

Yes

PCI Express power connectors (16-pin)

1

Number of EPS connectors

2

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

Purpose

PC

Bearing technology

FDB

Width

150 mm

Depth

150 mm

Height

86 mm

Package type

Box

80 PLUS certification

80 PLUS Gold
