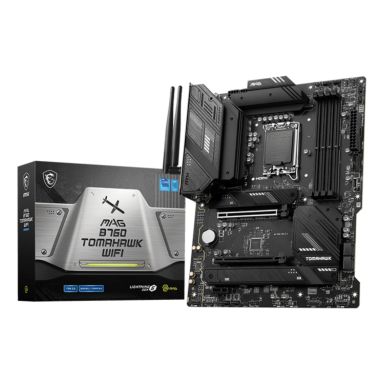

MSI MAG B760 TOMAHAWK WIFI motherboard LGA 1700 ATX
In Stock
|
$174.18
$209.02 (Inc. VAT)
Technical details
Motherboard chipset family
Intel
Supported processor sockets
LGA 1700
HDMI version
2.1
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Maximum internal memory
128 GB
Supported memory clock speed (max)
7000 MHz
Storage controllers
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
RAID support
Yes
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
DisplayPort version
1.4
USB 2.0 ports quantity
4
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Features
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC897
Expansion slots
PCI Express x1 (Gen 3.x) slots
2
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
6.4
System Management BIOS (SMBIOS) version
3.5
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10, Windows 11
Weight & dimensions
Width
243.8 mm
Depth
304.8 mm
MSI MAG B760 TOMAHAWK WIFI motherboard LGA 1700 ATX
