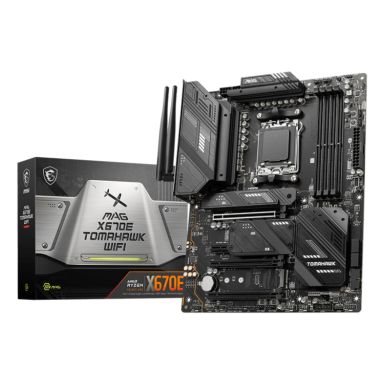

MSI MAG X670E TOMAHAWK WIFI motherboard AMD X670 Socket AM5 ATX
In Stock
|
$253.53
$304.24 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
Supported storage drive interfaces
M.2, SATA
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
TPM connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD X670
Supported processor sockets
Socket AM5
HDMI version
2.1
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
AMD
Motherboard chipset
AMD X670
RAID levels
0, 1, 10
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
AMD Opteron series
7000
Compatible processor series
AMD Ryzen 7
Supported processor sockets
Socket AM5
Maximum number of SMP processors
1
Processor socket
Socket AM5
Memory
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
No
Non-ECC
Yes
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 MHz
Maximum internal memory
128 GB
Supported memory clock speed (max)
6600 MHz
Storage controllers
Supported storage drive interfaces
M.2, SATA
RAID levels
0, 1, 10
RAID support
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
4
S/PDIF out port
Yes
Microphone in
Yes
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
LAN controller
Realtek RTL8125-BG
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Features
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
AMD
Motherboard chipset
AMD X670
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC1200
Product colour
Black
Expansion slots
Number of M.2 (M) slots
4
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10, Windows 11
Weight & dimensions
Width
243.8 mm
Depth
304.8 mm
Other features
AMD Opteron series
7000
MSI MAG X670E TOMAHAWK WIFI motherboard AMD X670 Socket AM5 ATX
