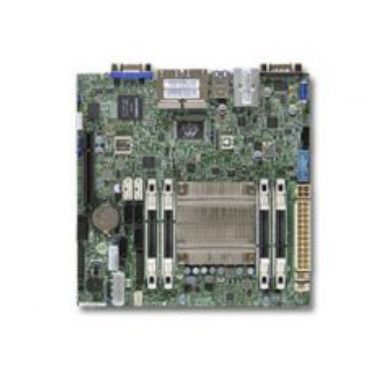

Supermicro Motherboard A1SAI-2550F (Retail)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Serial port headers
1
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
Mini-ITX
Component for
Server
Performance
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Motherboard form factor
Mini-ITX
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
14 W
Processor socket
BGA 1283
Processor number of cores supported
4
Memory
Supported memory types
DDR3-SDRAM
Memory voltage
1.351.5 V
ECC
Yes
Supported memory clock speeds
13331600 MHz
Maximum internal memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA IISATA III
Internal I/O
Supported storage drive interfaces
SATA IISATA III
USB 2.0 connectors
2
TPM connector
Yes
Serial port headers
1
Number of SATA III connectors
2
Number of SATA II connectors
4
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
5
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard form factor
Mini-ITX
Component for
Server
Expansion slots
PCI Express x8 (Gen 2.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
64 Mbit
ACPI version
5
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Weight & dimensions
Width
6.75" (171.4 mm)
Depth
6.75" (171.4 mm)
Supermicro Motherboard A1SAI-2550F (Retail)
| Length | 11.4 cm |
| Width | 11 cm |
| Height | 2.3 cm |
| Weight | 1.000000 kgs |
