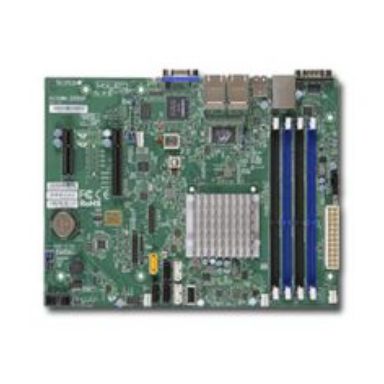

Supermicro Motherboard A1SAM-2550F (Retail)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Serial port headers
1
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
micro ATX
Component for
Server
Performance
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Motherboard form factor
micro ATX
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
14 W
Processor socket
BGA 1283
Processor number of cores supported
4
Memory
Supported memory types
DDR3-SDRAM
Memory voltage
1.351.5 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
13331600 MHz
Maximum internal memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA IISATA III
Internal I/O
Supported storage drive interfaces
SATA IISATA III
USB 2.0 connectors
3
TPM connector
Yes
Serial port headers
1
Number of SATA III connectors
2
Number of SATA II connectors
4
Chassis intrusion connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity
3
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
5
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard form factor
micro ATX
Component for
Server
Expansion slots
PCI Express x4 (Gen 2.x) slots
1
PCI Express x8 (Gen 2.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Software
Bundled software
SuperDoctor 5 Watch Dog NMI
Weight & dimensions
Width
9.61" (244 mm)
Depth
7.5" (190.5 mm)
Packaging content
Bundled software
SuperDoctor 5 Watch Dog NMI
Other features
PCI Express x8 (Gen 2.x) slots
1
Number of processors supported
1
Number of DIMM slots
4
Supported DIMM module capacities
16GB 2GB 4GB 8GB
Supermicro Motherboard A1SAM-2550F (Retail)
| Length | 11 cm |
| Width | 11.5 cm |
| Height | 2.5 cm |
| Weight | 1.000000 kgs |
