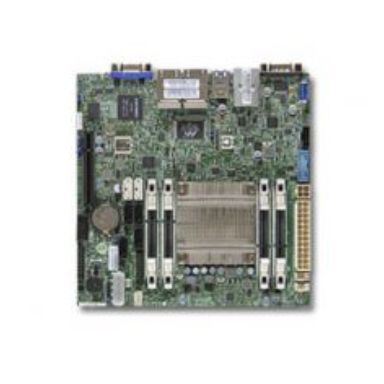

Supermicro Motherboard A1SRi-2758F (Retail)

Motherboard chipset family

Intel

Serial port headers

1

PC health monitoring

Fan LED Temperature Voltage

Motherboard form factor

mini ITX

Motherboard chipset family

Intel

Motherboard form factor

mini ITX

Processor manufacturer

Intel

Processor cores

8

Processor thermal power (max)

20 W

Compatible processor series

Intel Atom

Processor socket

BGA 1283

Memory slots type

SO-DIMM

Supported memory types

DDR3-SDRAM

Memory voltage

1.351.5 V

ECC

Yes

Supported memory clock speeds

13331600 MHz

Supported memory module capacities

2GB 4GB 8GB 16GB

Maximum internal memory

64 GB

Unbuffered memory

Yes

Supported storage drive interfaces

SATA IISATA III

Graphics adapter family

ASPEED

Graphics adapter

AST2400

Supported storage drive interfaces

SATA IISATA III

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

Serial port headers

1

Number of SATA III connectors

2

Number of SATA II connectors

4

IPMI 2.0 slot

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

2

VGA (D-Sub) ports quantity

1

Serial ports quantity

2

Ethernet LAN (RJ-45) ports

4

Ethernet LAN

Yes

Wi-Fi

No

Power source type

ATX

Motherboard chipset family

Intel

Motherboard form factor

mini ITX

PCI Express x8 (Gen 2.x) slots

1

BIOS type

UEFI AMI

BIOS memory size

64 Mbit

ACPI version

5

Power source type

ATX

Storage temperature (T-T)

0 - 60 °C

Graphics adapter family

ASPEED

Graphics adapter

AST2400

Width

6.75" (171.4 mm)

Depth

6.75" (171.4 mm)
