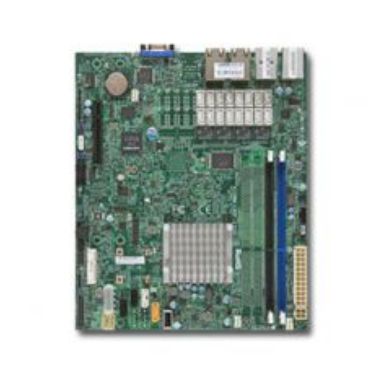

Supermicro Motherboard A1SRM-LN5F-2358 (Retail)
Out of Stock
|
Call For Price (0808 189 1246)
Technical details
Motherboard chipset family
Intel
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Serial port via internal header
Yes
PC health monitoring
Fan LED Temperature Voltage
Motherboard form factor
micro ATX
Performance
Motherboard chipset family
Intel
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
PC health monitoring
Fan LED Temperature Voltage
Motherboard form factor
micro ATX
Processor
Processor manufacturer
Intel
Processor frequency
2 GHz
Processor cores
2
Processor model
C2358
Processor thermal power (max)
7 W
Compatible processor series
Intel Atom
Processor socket
BGA 1283
Memory
Internal memory
16 GB
Memory slots type
DIMM
Supported memory types
DDR3-SDRAM
Memory channels
Dual-channel
Memory voltage
1.351.5 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
1333 MHz
Supported memory module capacities
2GB 4GB 8GB
Storage controllers
Supported storage drive interfaces
SATA IISATA III
Internal I/O
Supported storage drive interfaces
SATA IISATA III
USB 2.0 connectors
2
TPM connector
Yes
Serial port via internal header
Yes
Number of SATA III connectors
2
Number of SATA II connectors
2
IPMI 2.0 slot
Yes
Rear panel I/O ports
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
5
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I210-AT
Features
Power source type
ATX
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Expansion slots
PCI Express x4 (Gen 2.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
5
Power
Power source type
ATX
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Weight & dimensions
Width
8" (203.2 mm)
Depth
9.6" (243.8 mm)
Supermicro Motherboard A1SRM-LN5F-2358 (Retail)
| Length | 9.6 cm |
| Width | 8 cm |
| Weight | 1.00 kgs |
