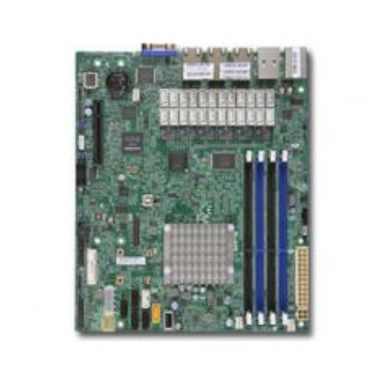

Supermicro Motherboard A1SRM-LN7F-2758 (Retail)
Out of Stock
|
Call For Price (0808 189 1246)
Technical details
Motherboard chipset family
Intel
Trusted Platform Module (TPM) version
1.2
Serial port headers
1
Intel Virtualization Technology (Intel VT)
VT-x
Intel AES New Instructions (Intel AES-NI)
Yes
Motherboard form factor
micro ATX
Performance
Motherboard chipset family
Intel
Trusted Platform Module (TPM) version
1.2
Intel Virtualization Technology (Intel VT)
VT-x
Intel AES New Instructions (Intel AES-NI)
Yes
Motherboard form factor
micro ATX
Processor
Processor manufacturer
Intel
Processor frequency
2.4 GHz
Processor cores
8
Processor model
C2758
Processor thermal power (max)
20 W
Compatible processor series
Intel Atom
Processor socket
BGA 1283
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR3-SDRAM
Memory voltage
1.351.5 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
13331600 MHz
Supported memory module capacities
16GB 2GB 4GB 8GB
Maximum internal memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA IISATA III
Graphics
Graphics adapter family
Aspeed
Graphics adapter
AST2400
Internal I/O
Supported storage drive interfaces
SATA IISATA III
USB 2.0 connectors
2
TPM connector
Yes
Serial port headers
1
Number of SATA III connectors
2
Number of SATA II connectors
4
IPMI 2.0 slot
Yes
Chassis intrusion connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
7
Network
Ethernet LAN
Yes
Wi-Fi
No
Features
Power source type
ATX
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Expansion slots
PCI Express x4 (Gen 2.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
5
Power
Power source type
ATX
Processor special features
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Turbo Boost Technology
No
Intel Hyper Threading Technology (Intel HT Technology)
No
Intel 64
Yes
Trusted Platform Module (TPM) version
1.2
Intel Virtualization Technology (Intel VT)
VT-x
Intel AES New Instructions (Intel AES-NI)
Yes
Operational conditions
Storage temperature (T-T)
0 - 60 °C
Video
Graphics adapter family
Aspeed
Graphics adapter
AST2400
Weight & dimensions
Width
8" (203.2 mm)
Depth
9.6" (243.8 mm)
Supermicro Motherboard A1SRM-LN7F-2758 (Retail)
| Length | 9.6 cm |
| Width | 8 cm |
| Weight | 1.00 kgs |
