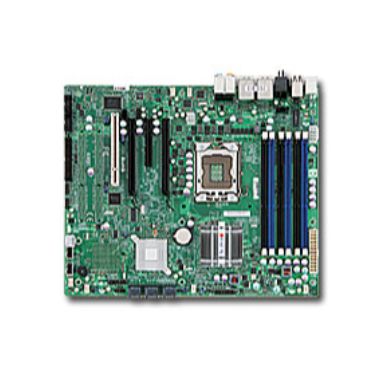

Supermicro C7X58 (Bulk)

Component for

Server

Motherboard form factor

ATX

Component for

Server

Motherboard form factor

ATX

Motherboard chipset

Intel X58

On-board graphics adapter

No

Number of SATA connectors

6

Motherboard southbridge

Intel ICH10R

Internal memory type

DIMM

Sustainability certificates

RoHS

Motherboard chipset

Intel X58

Motherboard southbridge

Intel ICH10R

Audio output channels

7.1 channels

Processor manufacturer

Intel

Number of processors supported

1

Processor socket

Socket B (LGA 1366)

Processor number of cores supported

46

System bus rate

6.4 GT/s

Processor system buses supported

80010661333 MHz

Intel Xeon series

30005000

Supported memory types

DDR3-SDRAM

Supported memory clock speeds

667800106613331600 MHz

Number of DIMM slots

6

Maximum internal memory

24 GB

Supported DIMM module capacities

1GB 256MB 2GB 4GB 512MB

ECC

Yes

Non-ECC

Yes

Memory channels

Triple-channel

Memory voltage

1.5 V

Internal memory type

DIMM

HDD interface

Serial ATA

RAID levels

01510

On-board graphics adapter

No

USB 2.0 connectors

4

Serial port headers

2

Number of SATA connectors

6

Number of IEEE1394 connectors

2

Number of chassis fan connectors

6

Chassis intrusion connector

Yes

USB 2.0 ports quantity

8

PS/2 ports quantity

2

Ethernet LAN (RJ-45) ports

2

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

Component for

Server

Motherboard form factor

ATX

Motherboard chipset

Intel X58

Motherboard southbridge

Intel ICH10R

Audio output channels

7.1 channels

PCI Express slots version

2

PCI Express x16 slots

2

PCI Express x4 slots

1

PCI slots

1

PCI Express slots quantity

4

BIOS type

AMI

BIOS memory size

32 Mbit

ACPI version

2

Operating temperature (T-T)

10 - 35 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

8 - 90%

Storage relative humidity (H-H)

5 - 95%

Audio output channels

7.1 channels

Width

305 mm

Depth

254 mm
