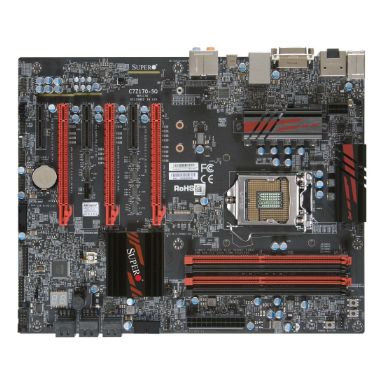

Supermicro Motherboard C7Z170-SQ (Retail)
In Stock
|
$317.01
$380.41 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
1
Thunderbolt headers
1
Supported storage drive interfaces
M.2 Serial ATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
S/PDIF out connector
Yes
Number of SATA III connectors
6
Number of COM connectors
1
Number of chassis fan connectors
5
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z170
Supported processor sockets
LGA 1151 (Socket H4)
PC health monitoring
CPU Fan LED Temperature Voltage
HDMI version
1.4
Motherboard form factor
ATX
Component for
PC
Thermal Design Power (TDP)
160 W
Audio
Audio output channels
7.1 channels
Performance
Motherboard chipset family
Intel
Motherboard chipset
Intel Z170
RAID levels
01510
Supported processor sockets
LGA 1151 (Socket H4)
PC health monitoring
CPU Fan LED Temperature Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
160 W
Intel Core i3/i5/i7/i9 series
i3-6xxxi3-7xxxi5-6xxxi5-7xxxi7-6xxxi7-7xxx
Compatible processor series
Intel Core⢠i3 Intel Core i5 Intel Core i7
Supported processor sockets
LGA 1151 (Socket H4)
Maximum number of SMP processors
1
Processor socket
LGA 1151 (Socket H4)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
Non-ECC
Yes
Supported memory clock speeds
3200 MHz
Supported UDIMM clock speeds
186621332400 MHz
Supported memory module capacities
2GB 4GB 8GB 16GB
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
M.2 Serial ATA III
RAID levels
01510
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.2
USB 2.0 ports quantity
2
HDMI version
1.4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
LAN controller
Intel I219-V
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel Z170
Supported processor sockets
LGA 1151 (Socket H4)
PC health monitoring
CPU Fan LED Temperature Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
RealTek ALC1150
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 3.x) slots
2
PCI Express x4 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
3
BIOS
BIOS type
UEFI AMI
BIOS memory size
16 Mbit
ACPI version
5
UEFI version
2.3.1
System Management BIOS (SMBIOS) version
3
Real-time clock (RTC)
Yes
Plug and Play
Yes
Desktop Management Interface (DMI) version
2.3
Power
Power source type
ATX
Software
Bundled software
SuperDoctor 5
Weight & dimensions
Width
304.8 mm
Depth
243.8 mm
Packaging content
Bundled software
SuperDoctor 5
Other features
Thermal Design Power (TDP)
160 W
PCI Express x4 (Gen 3.x) slots
1
Supported UDIMM clock speeds
186621332400 MHz
UEFI version
2.3.1
