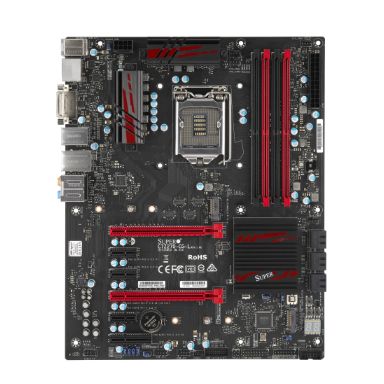

Supermicro Motherboard C7Z270-CG-L (Retail)
In Stock
|
$278.43
$334.12 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
Supported storage drive interfaces
M.2 Serial ATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
6
Number of COM connectors
1
Number of chassis fan connectors
5
EPS power connector (8-pin)
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z270
PC health monitoring
Fan LED Power supply Temperature Voltage
HDMI version
1.4b
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Watch Dog function
Yes
Motherboard chipset family
Intel
Motherboard chipset
Intel Z270
RAID levels
01510
PC health monitoring
Fan LED Power supply Temperature Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Celeron Intel Pentium
Processor socket
LGA 1151 (Socket H4)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
Non-ECC
Yes
Supported memory clock speeds
2800 MHz
Supported UDIMM clock speeds
21332400 MHz
Supported UDIMM module capacity
4GB 8GB 16GB
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
M.2 Serial ATA III
RAID levels
01510
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.2
USB 2.0 ports quantity
2
S/PDIF out port
Yes
HDMI version
1.4b
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
LAN controller
Intel I219-V
Ethernet interface type
Gigabit Ethernet
Features
Watch Dog function
Yes
Power source type
ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel Z270
PC health monitoring
Fan LED Power supply Temperature Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC1150
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
3
PCI Express x4 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
2
BIOS
BIOS type
UEFI AMI
BIOS memory size
16 Mbit
ACPI version
5
System Management BIOS (SMBIOS) version
2.7
Power
Power source type
ATX
Software
Bundled software
SuperDoctor 5
Weight & dimensions
Width
304.8 mm
Depth
243.8 mm
Packaging content
Bundled software
SuperDoctor 5
Other features
PCI Express x4 (Gen 3.x) slots
1
Supported UDIMM clock speeds
21332400 MHz
Supported UDIMM module capacity
4GB 8GB 16GB
Supermicro Motherboard C7Z270-CG-L (Retail)
