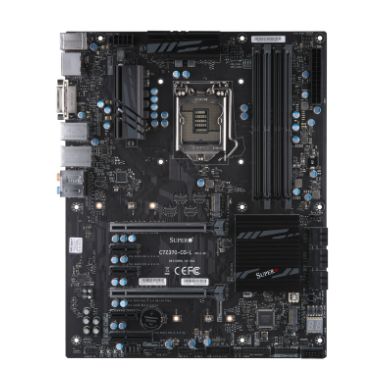

Supermicro Motherboard C7Z370-CG-L-O
In Stock
|
$304.66
$365.59 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
2
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
6
Number of chassis fan connectors
5
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel® Z370
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
ATX
Component for
Workstation
Thermal Design Power (TDP)
120 W
Sustainability certificates
RoHS
Audio
Audio output channels
7.1 channels
Performance
Watch Dog function
Yes
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Motherboard chipset family
Intel
Motherboard chipset
Intel® Z370
RAID levels
0-1-5-10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
Workstation
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
120 W
Processor thermal power (max)
120 W
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
Non-ECC
Yes
Supported memory clock speeds
2400-2666 MHz
Supported UDIMM clock speeds
2133-2400 MHz
Supported memory module capacities
4GB- 8GB- 16GB
Maximum internal memory
64 GB
Maximum UDIMM memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-5-10
RAID support
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
DisplayPorts quantity
1
COM ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® I219-V
Ethernet interface type
Gigabit Ethernet
Features
Watch Dog function
Yes
Power source type
ATX
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Motherboard chipset family
Intel
Motherboard chipset
Intel® Z370
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
Workstation
Audio chip
Realtek ALC1220
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
3
PCI Express x4 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
2
BIOS
BIOS type
EEPROM
BIOS memory size
128 Mbit
ACPI version
6
UEFI version
2.4
Power
Power source type
ATX
Software
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Weight & dimensions
Width
243.8 mm
Depth
304.8 mm
Supermicro Motherboard C7Z370-CG-L-O
