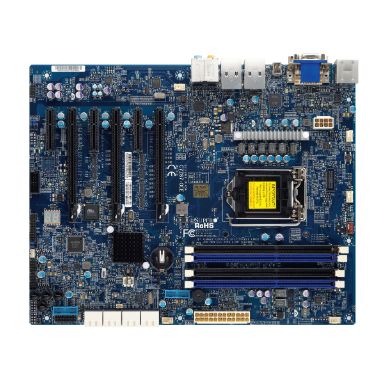

Supermicro Motherboard C7Z87-OCE (Retail)
Out of Stock
|
Call For Price (0808 189 1246)
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z87
Motherboard form factor
ATX
Component for
PC
Memory bandwidth (max)
6 GB/s
Audio
Audio output channels
7.1 channels
Performance
Motherboard chipset family
Intel
Motherboard chipset
Intel Z87
RAID levels
01510
Certification
RoHS
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Intel Core i3/i5/i7/i9 series
i3-4xxxi5-4xxxi7-4xxx
Compatible processor series
Intel Core™ i3 Intel Core i5 Intel Core i7
Processor socket
LGA 1150 (Socket H3)
Memory
Number of memory slots
4
Memory bandwidth (max)
6 GB/s
Memory slots type
DIMM
Supported memory types
DDR3-SDRAM
Memory voltage
1.351.5 V
Non-ECC
Yes
Supported memory clock speeds
1600213322002400260028003000 MHz
Supported memory module capacities
1GB 2GB 4GB 8GB
Maximum internal memory
32 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
Serial ATA III
RAID levels
01510
Internal I/O
Supported storage drive interfaces
Serial ATA III
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
TPM connector
Yes
Power fan connector
Yes
Number of SATA connectors
8
Number of SATA III connectors
8
Number of IEEE1394 connectors
2
Number of COM connectors
1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Thunderbolt ports quantity
1
PS/2 ports quantity
2
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
LAN controller
Intel I210-AT Intel I217-V
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel Z87
Certification
RoHS
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Expansion slots
PCI Express x4 (Gen 2.x) slots
3
PCI Express x16 (Gen 3.x) slots
3
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
5
Power
Power source type
ATX
Certificates
Certification
RoHS
Software
Bundled software
SuperDoctor III
Watch Dog
Weight & dimensions
Width
304.8 mm
Depth
244 mm
Packaging content
Bundled software
SuperDoctor III
Watch Dog
Supermicro Motherboard C7Z87-OCE (Retail)
| Weight | 1.00 kgs |
