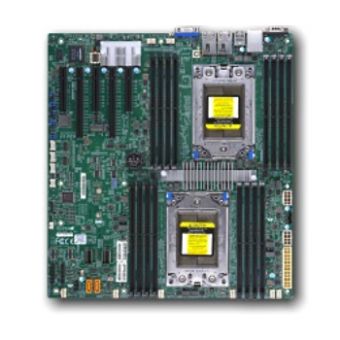

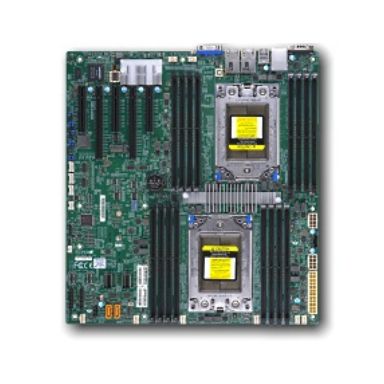

Supermicro Motherboard H11DSI-NT (Bulk)

RAID levels

0- 1- 5- 10

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2

Motherboard form factor

Extended ATX

Processor manufacturer

AMD

AMD Opteron series

7000

Processor number of cores supported

32- 28

Supported memory types

DDR4-SDRAM

Memory channels

Octa-channel

Memory voltage

1.2 V

ECC

Yes

Supported memory clock speeds

2666 MHz

Maximum internal memory

2048 GB

Supported storage drive interfaces

SATA III

RAID levels

0- 1- 5- 10

RAID support

Yes

On-board graphics card model

Aspeed AST2500

Supported storage drive interfaces

SATA III

Number of SATA III connectors

10

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

1

Ethernet LAN (RJ-45) ports

3

COM ports quantity

1

Ethernet LAN

Yes

Wi-Fi

No

Ethernet interface type

10 Gigabit Ethernet

Motherboard form factor

Extended ATX

Harmonized System (HS) code

84733020

PCI Express x4 (Gen 3.x) slots

2

PCI Express x8 (Gen 3.x) slots

3

PCI Express x16 (Gen 3.x) slots

2

BIOS type

EEPROM

ACPI version

5.1

System Management BIOS (SMBIOS) version

3.1.1

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

5 - 95%

Operating relative humidity (H-H)

8 - 90%

Width

305 mm

Depth

331 mm
