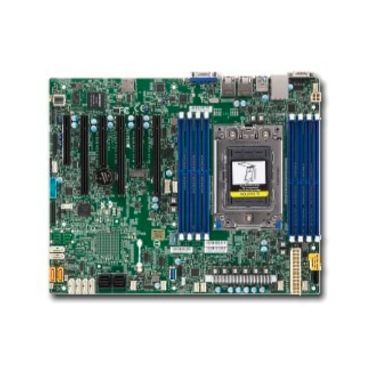

H11 AMD EPYC UP platform with socket SP3 Zen core CPU,So
In Stock
|
$627.03
$752.44 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
1
Supported storage drive interfaces
SATA III
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
12
Number of COM connectors
1
Technical details
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Number of processors supported
1
Number of DIMM slots
8
Motherboard form factor
ATX
Component for
Server
Performance
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Motherboard form factor
ATX
Component for
Server
Processor
Processor manufacturer
AMD
Compatible processor series
AMD EPYC
Processor socket
Socket SP3
Memory
Supported memory types
DDR4-SDRAM
Memory channels
Octa-channel
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
2666 MHz
Maximum internal memory
1024 GB
Storage controllers
Supported storage drive interfaces
SATA III
Graphics
On-board graphics card model
Aspeed AST2500
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard form factor
ATX
Component for
Server
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
1
PCI Express x8 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
3
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
5.1
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
305 mm
Depth
244 mm
H11 AMD EPYC UP platform with socket SP3 Zen core CPU,So
