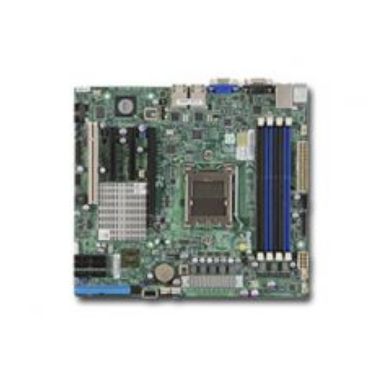

Supermicro H8SCM-F

Motherboard chipset

AMD SR5690

Supported processor sockets

Socket C32

Serial port headers

2

Number of processors supported

1

Number of DIMM slots

4

Motherboard form factor

micro ATX

Component for

Server

Motherboard chipset

AMD SR5690

RAID levels

0110

Supported processor sockets

Socket C32

Motherboard form factor

micro ATX

Component for

Server

Processor manufacturer

AMD

AMD Opteron series

4000

Supported processor sockets

Socket C32

Processor socket

Socket C32

Processor number of cores supported

48

Supported memory types

DDR3-SDRAM

Memory voltage

1.351.5 V

ECC

Yes

Non-ECC

Yes

Supported memory clock speeds

106613331600 MHz

Maximum internal memory

128 GB

Maximum RDIMM memory

128 GB

Maximum UDIMM memory

32 GB

Supported storage drive interfaces

SATA II

RAID levels

0110

On-board graphics adapter model

Matrox G200eW

On-board graphics adapter memory

16 MB

Supported storage drive interfaces

SATA II

USB 2.0 connectors

5

Serial port headers

2

Number of SATA connectors

6

CPU fan connector

Yes

USB 2.0 ports quantity

7

VGA (D-Sub) ports quantity

1

Serial ports quantity

1

PS/2 ports quantity

1

Ethernet LAN (RJ-45) ports

2

IPMI LAN (RJ-45) port

Yes

Ethernet LAN

Yes

Wi-Fi

No

LAN controller

Intel 82574L

Ethernet interface type

Gigabit Ethernet

Motherboard chipset

AMD SR5690

Supported processor sockets

Socket C32

Motherboard form factor

micro ATX

Component for

Server

PCI Express x8 slots

1

PCI Express x4 slots

1

PCI Express x16 slots

1

PCI Express slots version

2

BIOS type

AMI

BIOS memory size

16 Mbit

ACPI version

2

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

5 - 95%

Operating relative humidity (H-H)

8 - 90%

Width

9.61" (244 mm)

Depth

8.58" (218 mm)
