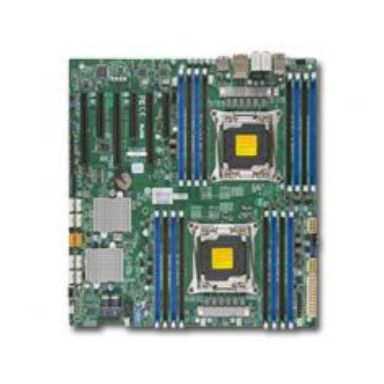

Supermicro Motherboard X10DAC (Retail)

Motherboard chipset

Intel C612

Number of processors supported

2

Number of DIMM slots

16

Motherboard form factor

Extended ATX

Component for

Server

Audio output channels

7.1 channels

Motherboard chipset

Intel C612

RAID levels

01510

Audio output channels

7.1 channels

Motherboard form factor

Extended ATX

Component for

Server

Processor manufacturer

Intel

Processor thermal power (max)

160 W

Processor socket

LGA 2011 (Socket R)

Supported QPI

9.6 GT/s

Processor number of cores supported

18

Supported memory types

DDR4-SDRAM

Memory voltage

1.2 V

ECC

Yes

Supported memory clock speeds

160018662133 MHz

Supported RDIMM module capacity

16GB 32GB 4GB 8GB

Maximum RDIMM memory

512 GB

Supported storage drive interfaces

SATA III

RAID levels

01510

Supported storage drive interfaces

SATA III

TPM connector

Yes

Number of SATA III connectors

10

Number of COM connectors

2

Integrated SAS ports

8

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

USB 2.0 ports quantity

5

Ethernet LAN (RJ-45) ports

2

IPMI LAN (RJ-45) port

Yes

Ethernet LAN

Yes

Wi-Fi

No

Wake-on-LAN ready

Yes

LAN controller

Intel I210Intel I210

Ethernet interface type

Gigabit Ethernet

Motherboard chipset

Intel C612

Audio output channels

7.1 channels

Motherboard form factor

Extended ATX

Component for

Server

PCI Express x4 (Gen 2.x) slots

1

PCI Express x8 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

3

BIOS type

AMI

BIOS memory size

128 Mbit

ACPI version

4

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

5 - 95%

Operating relative humidity (H-H)

8 - 90%

Width

12" (305 mm)

Depth

13" (330 mm)
