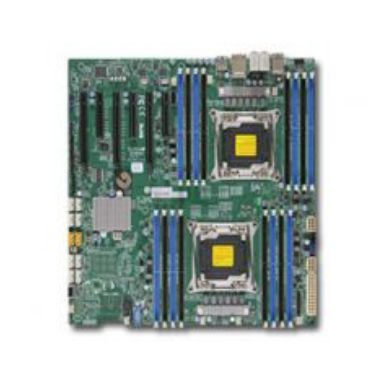

Supermicro Motherboard X10DAi (Bulk)

Motherboard chipset

Intel C612

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

1.2

Number of processors supported

2

Number of DIMM slots

16

Motherboard form factor

Extended ATX

Sustainability certificates

RoHS

Audio output channels

7.1 channels

Motherboard chipset

Intel C612

RAID levels

01510

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

1.2

Audio output channels

7.1 channels

Motherboard form factor

Extended ATX

Processor manufacturer

Intel

Processor thermal power (max)

160 W

Intel Xeon series

E5-2600

Processor socket

LGA 2011 (Socket R)

Supported QPI

9.6 GT/s

Processor number of cores supported

18

Supported memory types

DDR4-SDRAM

Memory voltage

1.2 V

ECC

Yes

Supported memory clock speeds

160018662133 MHz

Supported RDIMM module capacity

16GB 32GB 4GB 8GB

Maximum internal memory

1000 GB

Maximum RDIMM memory

512 GB

Supported storage drive interfaces

SATA III

RAID levels

01510

RAID support

Yes

Supported storage drive interfaces

SATA III

USB 2.0 connectors

2

TPM connector

Yes

Number of SATA III connectors

10

Chassis intrusion connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2 4

USB 2.0 ports quantity

2

Ethernet LAN (RJ-45) ports

2

Ethernet LAN

Yes

Wi-Fi

No

LAN controller

Intel I210

Ethernet interface type

Fast Ethernet Gigabit Ethernet

Motherboard chipset

Intel C612

Audio output channels

7.1 channels

Motherboard form factor

Extended ATX

PCI Express x4 (Gen 2.x) slots

1

PCI Express x8 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

3

BIOS type

AMI

BIOS memory size

128 Mbit

ACPI version

4

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

1.2

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

5 - 95%

Operating relative humidity (H-H)

8 - 90%

Width

12" (305 mm)

Depth

13" (330 mm)
