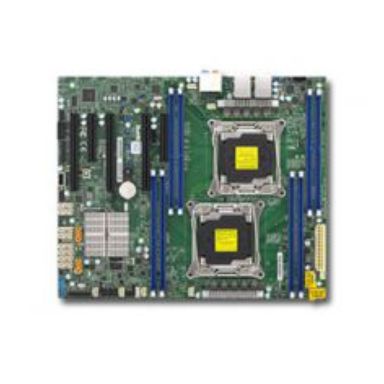

Supermicro Motherboard X10DAL-I (Retail)

Motherboard chipset family

Intel

Motherboard chipset

Intel C612

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

1.2

Supported processor sockets

LGA 2011 (Socket R)

PC health monitoring

Fan LED Temperature Voltage

Motherboard form factor

ATX

Component for

PC

USB version

2.0/3.2 Gen 1 (3.1 Gen 1)

USB ports quantity

9

ECC supported by processor

Yes

Sustainability certificates

RoHS

Audio output channels

7.1 channels

Watch Dog function

Yes

Motherboard chipset family

Intel

Motherboard chipset

Intel C612

RAID levels

01510

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

1.2

Supported processor sockets

LGA 2011 (Socket R)

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

Intel

Processor cores

18

ECC supported by processor

Yes

Compatible processor series

Intel Xeon

System bus rate

9.6 GT/s

Supported processor sockets

LGA 2011 (Socket R)

Maximum number of SMP processors

2

Processor socket

LGA 2011 (Socket R)

Number of memory slots

8

Memory slots type

DIMM

Supported memory types

DDR4-SDRAM

Memory voltage

1.2 V

ECC

Yes

Maximum internal memory

512 GB

Maximum RDIMM memory

256 GB

Supported storage drive interfaces

SATA III

RAID levels

01510

Supported storage drive interfaces

SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of SATA III connectors

10

Number of COM connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

1

Ethernet LAN (RJ-45) ports

2

Ethernet LAN

Yes

LAN controller

Intel I210

Ethernet interface type

Gigabit Ethernet

Watch Dog function

Yes

Power source type

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel C612

Supported processor sockets

LGA 2011 (Socket R)

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

BIOS type

UEFI AMI

BIOS memory size

16 Mbit

ACPI version

4

Power source type

ATX

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

1.2

Storage temperature (T-T)

10 - 35 °C

Operating temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 95%

Operating relative humidity (H-H)

8 - 90%

Width

12" (305 mm)

Depth

10" (254 mm)
