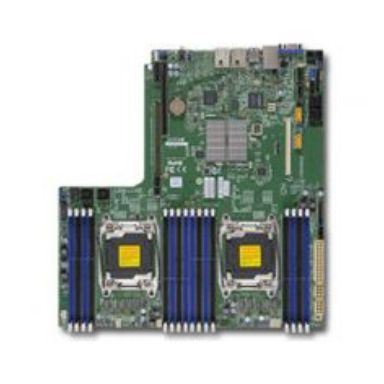

Supermicro Motherboard X10DDW-I (Retail)

Motherboard chipset

Intel C612

Serial port headers

1

Number of processors supported

2

Number of DIMM slots

16

Sustainability certificates

RoHS

Motherboard chipset

Intel C612

RAID levels

01510

Processor manufacturer

Intel

Processor thermal power (max)

145 W

Intel Xeon series

E5-2600

Processor socket

LGA 2011 (Socket R)

Supported QPI

9.6 GT/s

Processor number of cores supported

18

Supported memory types

DDR4-SDRAM

ECC

Yes

Supported memory clock speeds

160018662133 MHz

Supported RDIMM module capacity

4GB 8GB 16GB 32GB

Maximum internal memory

1000 GB

Maximum RDIMM memory

512 GB

Supported storage drive interfaces

SATA III

RAID levels

01510

RAID support

Yes

On-board graphics adapter model

Aspeed AST2400

Supported storage drive interfaces

SATA III

USB 2.0 connectors

2

TPM connector

Yes

Serial port headers

1

Number of SATA III connectors

10

Chassis intrusion connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

2

VGA (D-Sub) ports quantity

1

Ethernet LAN (RJ-45) ports

2

IPMI LAN (RJ-45) port

Yes

Ethernet LAN

Yes

Wi-Fi

No

Ethernet interface type

Fast Ethernet Gigabit Ethernet

Motherboard chipset

Intel C612

PCI Express x8 (Gen 3.x) slots

2

BIOS type

AMI

BIOS memory size

16 Mbit

ACPI version

4

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

5 - 95%

Operating relative humidity (H-H)

8 - 90%

Width

12.8" (325 mm)

Depth

13.4" (340 mm)
