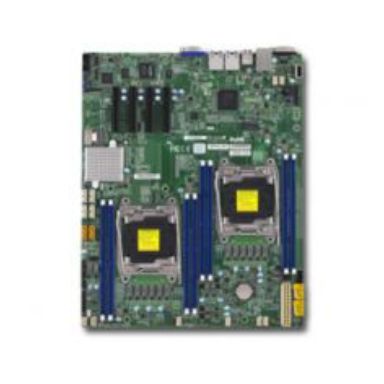

Supermicro Motherboard X10DRD-I (Retail)
Out of Stock
|
Call For Price (0808 189 1246)
Technical details
Motherboard chipset
Intel C612
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Number of processors supported
2
Number of DIMM slots
8
Motherboard form factor
Extended ATX
ECC supported by processor
Yes
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C612
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Motherboard form factor
Extended ATX
Processor
Processor manufacturer
Intel
ECC supported by processor
Yes
Processor thermal power (max)
145 W
Intel Xeon series
E5-2600
Processor socket
LGA 2011 (Socket R)
Supported QPI
9.6 GT/s
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
160018662133 MHz
Supported RDIMM module capacity
4GB 8GB 16GB 32GB
Maximum internal memory
512 GB
Maximum RDIMM memory
256 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
TPM connector
Yes
Number of SATA III connectors
10
Number of COM connectors
1
Chassis intrusion connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I350
Ethernet interface type
Fast Ethernet Gigabit Ethernet
Features
Motherboard chipset
Intel C612
Motherboard form factor
Extended ATX
Expansion slots
PCI Express x8 (Gen 3.x) slots
4
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
4
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
13" (331 mm)
Depth
10.5" (267 mm)
Other features
PCI Express x8 (Gen 3.x) slots
4
Supported RDIMM module capacity
4GB 8GB 16GB 32GB
Number of processors supported
2
Number of DIMM slots
8
Intel Xeon series
E5-2600
Supported LRDIMM module capacity
32GB 64GB
Maximum LRDIMM memory
512 GB
Supermicro Motherboard X10DRD-I (Retail)
| Length | 17 cm |
| Width | 13.25 cm |
| Height | 3.25 cm |
| Weight | 1.00 kgs |
