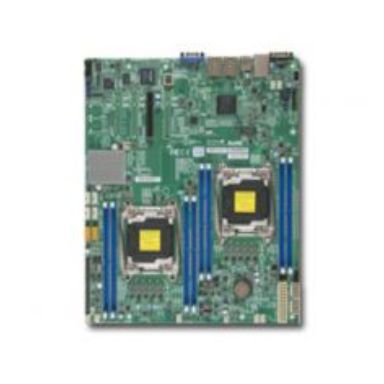

Supermicro Motherboard X10DRD-L (Retail)
In Stock
|
$597.66
$717.19 (Inc. VAT)
Technical details
Motherboard chipset
Intel C612
Trusted Platform Module (TPM)
Yes
Number of processors supported
2
Number of DIMM slots
8
Motherboard form factor
Extended ATX
Component for
Server
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C612
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Motherboard form factor
Extended ATX
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
145 W
Intel Xeon series
E5-2600
Processor socket
LGA 2011 (Socket R)
Supported QPI
9.6 GT/s
Processor number of cores supported
22
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
1600186621332400 MHz
Supported RDIMM module capacity
4GB 8GB 16GB 32GB
Maximum RDIMM memory
512 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
TPM connector
Yes
Power fan connector
Yes
Number of SATA III connectors
6
Rear panel I/O ports
USB 2.0 ports quantity
7
VGA (D-Sub) ports quantity
1
Serial ports quantity
2
Ethernet LAN (RJ-45) ports
2
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I350 Realtek RTL8211E
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel C612
Motherboard form factor
Extended ATX
Component for
Server
Expansion slots
PCI Express x8 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI
BIOS memory size
16 Mbit
ACPI version
4
Processor special features
Trusted Platform Module (TPM)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
13" (331 mm)
Depth
10.5" (267 mm)
Supermicro Motherboard X10DRD-L (Retail)
| Length | 18.25 cm |
| Width | 14.75 cm |
| Height | 4.87 cm |
| Weight | 1.000000 kgs |
