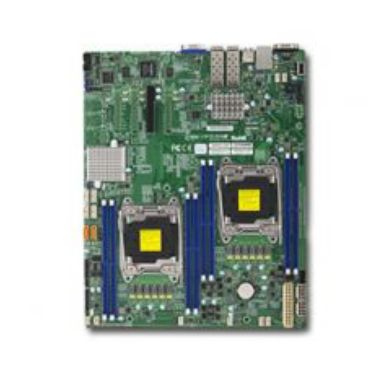

Supermicro Motherboard X10DRD-LTP (Retail)
Out of Stock
|
Call For Price (0808 189 1246)
Technical details
Motherboard chipset
Intel C612
Number of processors supported
2
Number of DIMM slots
8
Intel Matrix Storage Technology (Intel MST)
Yes
Intel High Definition Audio (Intel HD Audio)
Yes
Motherboard form factor
Extended ATX
USB version
2
ECC supported by processor
No
Intel Rapid Storage Technology enterprise
Yes
Sustainability certificates
RoHS
Memory channels supported by processor
Dodeca
Audio
Audio output channels
1.0 channels
Performance
Motherboard chipset
Intel C612
RAID levels
01510
Intel Matrix Storage Technology (Intel MST)
Yes
Intel High Definition Audio (Intel HD Audio)
Yes
Audio output channels
1.0 channels
Motherboard form factor
Extended ATX
Processor
Processor manufacturer
Intel
ECC supported by processor
No
Processor thermal power (max)
145 W
Intel Xeon series
E5-2600
Processor socket
LGA 2011 (Socket R)
Supported QPI
9.6 GT/s
Processor number of cores supported
18
Memory channels supported by processor
Dodeca
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
160018662133 MHz
Supported RDIMM module capacity
4GB 8GB 16GB 32GB 64GB
Maximum internal memory
512 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
Number of COM connectors
1
Chassis intrusion connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
10
COM ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Features
Motherboard chipset
Intel C612
Audio output channels
1.0 channels
Motherboard form factor
Extended ATX
Expansion slots
PCI Express x8 (Gen 3.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
4
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
13" (331 mm)
Depth
10.5" (267 mm)
Supermicro Motherboard X10DRD-LTP (Retail)
| Length | 10.5 cm |
| Width | 13 cm |
| Weight | 1.00 kgs |
