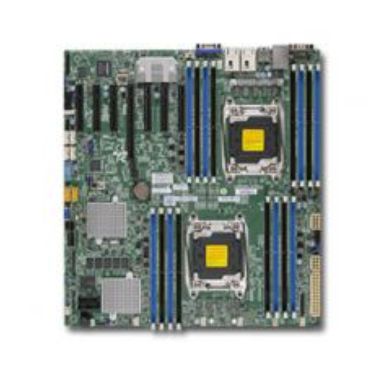

Supermicro Motherboard X10DRH-CT (Retail)

Motherboard chipset

Intel C612

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

1.2

Number of processors supported

2

Number of DIMM slots

16

Motherboard form factor

ATX

Component for

Server

Motherboard chipset

Intel C612

RAID levels

0156105060

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

1.2

Motherboard form factor

ATX

Component for

Server

Intelligent Platform Management Interface (IPMI) support

Yes

Processor manufacturer

Intel

Processor thermal power (max)

145 W

Processor socket

LGA 2011 (Socket R)

Supported QPI

9.6 GT/s

Processor number of cores supported

18

Supported memory types

DDR4-SDRAM

Memory voltage

1.2 V

ECC

Yes

Supported memory clock speeds

160018662133 MHz

Supported RDIMM module capacity

16GB 32GB 4GB 8GB

Maximum internal memory

1024 GB

Maximum RDIMM memory

512 GB

Supported storage drive interfaces

Serial Attached SCSI (SAS)

RAID levels

0156105060

On-board graphics adapter model

Aspeed AST2400

Supported storage drive interfaces

Serial Attached SCSI (SAS)

Number of SATA III connectors

10

Integrated SAS ports

8

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

1

Serial ports quantity

2

Ethernet LAN (RJ-45) ports

3

COM ports quantity

2

Ethernet LAN

Yes

Wi-Fi

No

LAN controller

Intel X540 Realtek RTL8211E

Motherboard chipset

Intel C612

Motherboard form factor

ATX

Component for

Server

PCI Express x8 (Gen 3.x) slots

6

PCI Express x16 (Gen 3.x) slots

1

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

ACPI version

4

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

1.2

Intelligent Platform Management Interface (IPMI) support

Yes

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

5 - 95%

Operating relative humidity (H-H)

8 - 90%

Width

12" (305 mm)

Depth

13.1" (332 mm)
