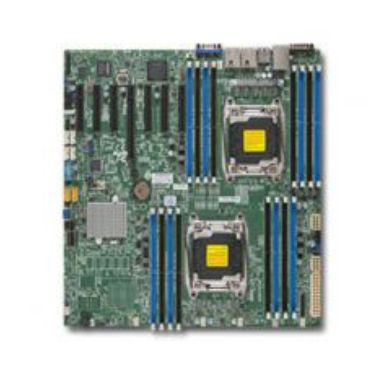

Supermicro Motherboard X10DRH-I (Retail)
In Stock
|
$677.83
$813.40 (Inc. VAT)
Technical details
Motherboard chipset
Intel C612
Number of processors supported
2
Number of DIMM slots
16
Motherboard form factor
Extended ATX
Component for
Server
Performance
Motherboard chipset
Intel C612
RAID levels
01510
Motherboard form factor
Extended ATX
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
145 W
Intel Xeon series
E5-2600
Processor socket
LGA 2011 (Socket R)
Supported QPI
9.6 GT/s
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
160018662133 MHz
Supported RDIMM module capacity
16GB 32GB 4GB 8GB
Supported UDIMM module capacity
64
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
Internal I/O
Supported storage drive interfaces
SATA III
TPM connector
Yes
Number of SATA III connectors
10
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
3
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I350 Realtek RTL8211E
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel C612
Motherboard form factor
Extended ATX
Component for
Server
Expansion slots
PCI Express x8 (Gen 3.x) slots
6
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
4
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
12" (305 mm)
Depth
13.1" (332 mm)
Supermicro Motherboard X10DRH-I (Retail)
| Length | 17 cm |
| Width | 13.5 cm |
| Height | 4 cm |
| Weight | 1.000000 kgs |
