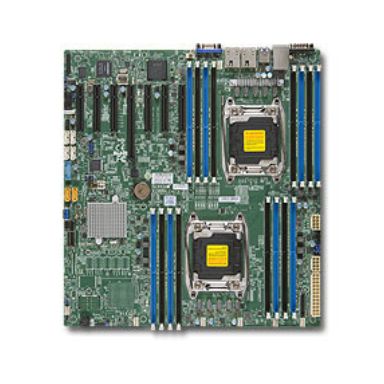

Supermicro Motherboard X10DRH-IT (Bulk)
In Stock
|
$812.05
$974.46 (Inc. VAT)
Motherboard chipset
Intel® C612
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Number of processors supported
2
Number of DIMM slots
16
Motherboard form factor
Extended ATX
Component for
Server
Performance
Motherboard chipset
Intel® C612
RAID levels
0- 1- 5- 10
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Motherboard form factor
Extended ATX
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
145 W
Intel Xeon series
E5-2600
Processor socket
LGA 2011 (Socket R)
Supported QPI
9.6 GT/s
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
1600-1866-2133 MHz
Supported RDIMM module capacity
16GB- 32GB- 4GB- 8GB
Maximum internal memory
1000 GB
Maximum RDIMM memory
512 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
On-board graphics card model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
TPM connector
Yes
Number of SATA III connectors
10
Number of COM connectors
1
Chassis intrusion connector
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
3
COM ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Features
Motherboard chipset
Intel® C612
Motherboard form factor
Extended ATX
Component for
Server
Harmonized System (HS) code
84733020
Expansion slots
PCI Express x8 (Gen 3.x) slots
6
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
4
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
305 mm
Depth
332 mm
Supermicro Motherboard X10DRH-IT (Bulk)
