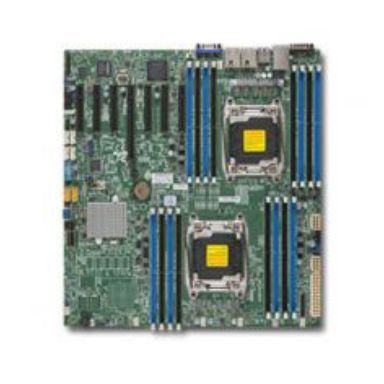

Supermicro Motherboard X10DRH-IT (Retail)
In Stock
|
$833.11
$999.73 (Inc. VAT)
Technical details
Motherboard chipset
Intel C612
Serial port headers
1
Number of processors supported
2
Number of DIMM slots
16
Motherboard southbridge
AMD SB850
Intel Client Initiated Remote Access (CIRA) technology
Yes
Intel AES New Instructions (Intel AES-NI)
Yes
Intel Active Management Technology (Intel AMT)
Yes
Intel AC'97 technology
Yes
Motherboard form factor
Extended ATX
Sustainability certificates
RoHS
Audio
Audio output channels
1.0 channels
Performance
Motherboard chipset
Intel C612
RAID levels
01510
Motherboard southbridge
AMD SB850
Intel Client Initiated Remote Access (CIRA) technology
Yes
Intel AES New Instructions (Intel AES-NI)
Yes
Intel Active Management Technology (Intel AMT)
Yes
Intel AC'97 technology
Yes
Audio output channels
1.0 channels
Motherboard form factor
Extended ATX
Processor
Processor manufacturer
Intel
Processor thermal power (max)
145 W
Intel Xeon series
E5-2600
Processor socket
LGA 2011 (Socket R)
Supported QPI
9.6 GT/s
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
160018662133 MHz
Supported RDIMM module capacity
4GB 8GB 16GB 32GB
Maximum internal memory
1000 GB
Maximum RDIMM memory
1000 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
TPM connector
Yes
Serial port headers
1
Number of SATA III connectors
10
Number of COM connectors
1
Chassis intrusion connector
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Features
Motherboard chipset
Intel C612
Motherboard southbridge
AMD SB850
Audio output channels
1.0 channels
Motherboard form factor
Extended ATX
Expansion slots
PCI Express x8 (Gen 3.x) slots
6
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
4
Processor special features
Intel Client Initiated Remote Access (CIRA) technology
Yes
Intel AES New Instructions (Intel AES-NI)
Yes
Intel Active Management Technology (Intel AMT)
Yes
Intel AC'97 technology
Yes
Intel Advanced Management Technology
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
12" (305 mm)
Depth
13.1" (332 mm)
Supermicro Motherboard X10DRH-IT (Retail)
| Length | 18.25 cm |
| Width | 14.25 cm |
| Height | 4.6 cm |
| Weight | 1.000000 kgs |
