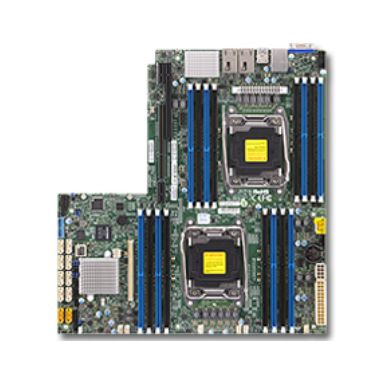

Supermicro Motherboard X10DRW-IT (Bulk)
In Stock
|
$833.34
$1000.01 (Inc. VAT)
Technical details
Motherboard chipset
Intel® C612
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Serial port headers
1
Number of processors supported
2
Number of DIMM slots
16
Component for
Server
Performance
Motherboard chipset
Intel® C612
RAID levels
0, 1, 5, 10
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
145 W
Intel Xeon series
E5-2600
Processor socket
LGA 2011 (Socket R)
Supported QPI
9.6 GT/s
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
1600,1866,2133 MHz
Supported RDIMM module capacity
16GB, 32GB, 4GB, 8GB
Maximum internal memory
1 TB
Maximum RDIMM memory
512 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0, 1, 5, 10
RAID support
Yes
Graphics
On-board graphics card model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
TPM connector
Yes
Serial port headers
1
Number of SATA III connectors
10
Chassis intrusion connector
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2, 4
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
3
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® X540, Realtek RTL8211E
Ethernet interface type
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Motherboard chipset
Intel® C612
Component for
Server
Harmonized System (HS) code
84733020
Expansion slots
PCI Express x16 (Gen 3.x) slots
2
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
4.0
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Width
312 mm
Depth
330 mm
Other features
Supported RDIMM module capacity
16GB, 32GB, 4GB, 8GB
Number of processors supported
2
Number of DIMM slots
16
Intel Xeon series
E5-2600
Supported LRDIMM module capacity
32GB, 64GB
Maximum LRDIMM memory
1 TB
Supermicro Motherboard X10DRW-IT (Bulk)
