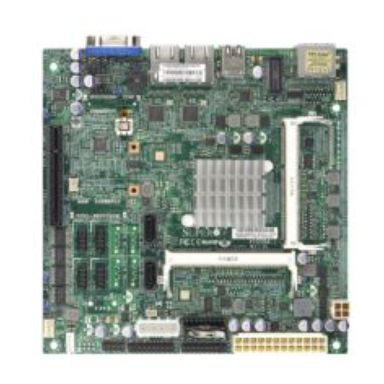

Supermicro Motherboard X10SBA-L (Retail)

Number of displays supported

2

Motherboard chipset family

Intel

Trusted Platform Module (TPM) version

1.2

PC health monitoring

Fan LED Temperature

Motherboard form factor

mini ITX

Sustainability certificates

RoHS

Motherboard chipset family

Intel

Trusted Platform Module (TPM) version

1.2

PC health monitoring

Fan LED Temperature

Motherboard form factor

mini ITX

Processor manufacturer

Intel

Processor frequency

2.42 GHz

Processor model

J1900

Processor thermal power (max)

8 W

Compatible processor series

Intel Celeron

Processor socket

BGA 1170

Number of memory slots

2

Memory slots type

SO-DIMM

Supported memory types

DDR3-SDRAM

Memory voltage

1.35 V

Non-ECC

Yes

Supported memory clock speeds

10661333 MHz

Supported memory module capacities

2GB 4GB

Maximum internal memory

8 GB

Supported storage drive interfaces

SATA II

Number of displays supported

2

Graphics adapter family

Intel

Graphics adapter

HD Graphics

Supported storage drive interfaces

SATA II

USB 2.0 connectors

2

TPM connector

Yes

Number of SATA II connectors

2

Number of COM connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 2.0 ports quantity

1

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

2

DisplayPorts quantity

1

Ethernet LAN

Yes

Wi-Fi

No

LAN controller

Intel I210-AT

Ethernet interface type

Fast Ethernet Gigabit Ethernet

Power source type

ATX

Motherboard chipset family

Intel

PC health monitoring

Fan LED Temperature

Motherboard form factor

mini ITX

BIOS type

AMI

BIOS memory size

64 Mbit

ACPI version

5

Power source type

ATX

Trusted Platform Module (TPM) version

1.2

Storage temperature (T-T)

0 - 60 °C

Operating temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

10 - 95%

Operating relative humidity (H-H)

10 - 85%

Graphics adapter family

Intel

Graphics adapter

HD Graphics

Width

6.69" (170 mm)

Depth

6.69" (170 mm)
