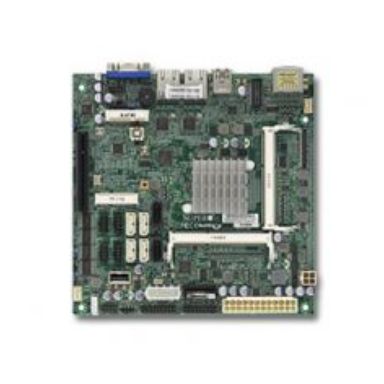

Supermicro Motherboard X10SBA (Retail)
Out of Stock
|
Call For Price (0808 189 1246)
Technical details
Motherboard chipset family
Intel
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
PC health monitoring
Fan LED Temperature
Motherboard form factor
mini ITX
ECC supported by processor
Yes
Performance
Motherboard chipset family
Intel
RAID levels
0110
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
PC health monitoring
Fan LED Temperature
Motherboard form factor
mini ITX
Processor
Processor manufacturer
Intel
Processor frequency
2.42 GHz
ECC supported by processor
Yes
Processor thermal power (max)
8 W
Compatible processor series
Intel Celeron
Processor socket
BGA 1170
Memory
Number of memory slots
2
Memory slots type
SO-DIMM
Supported memory types
DDR3-SDRAM
Memory voltage
1.35 V
Non-ECC
Yes
Supported memory clock speeds
106613331600 MHz
Supported memory module capacities
2GB 4GB
Maximum internal memory
8 GB
Storage controllers
Supported storage drive interfaces
SATA IISATA III
RAID levels
0110
Graphics
Graphics adapter family
Intel
Graphics adapter
HD Graphics
Internal I/O
Supported storage drive interfaces
SATA IISATA III
mSATA ports quantity
1
TPM connector
Yes
Number of SATA III connectors
4
Number of SATA II connectors
2
Number of COM connectors
4
Rear panel I/O ports
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I210-AT
Ethernet interface type
Fast Ethernet Gigabit Ethernet
Features
Power source type
ATX
Motherboard chipset family
Intel
PC health monitoring
Fan LED Temperature
Motherboard form factor
mini ITX
Expansion slots
PCI Express x8 slots
1
Mini PCI Express slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
64 Mbit
ACPI version
5
Power
Power source type
ATX
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Operational conditions
Storage temperature (T-T)
0 - 60 °C
Operating temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 95%
Operating relative humidity (H-H)
10 - 85%
Video
Graphics adapter family
Intel
Graphics adapter
HD Graphics
Weight & dimensions
Width
6.69" (170 mm)
Depth
6.69" (170 mm)
Other features
Processor frequency
2.42 GHz
mSATA ports quantity
1
Supermicro Motherboard X10SBA (Retail)
| Length | 11.1 cm |
| Width | 11 cm |
| Height | 2.3 cm |
| Weight | 1.00 kgs |
