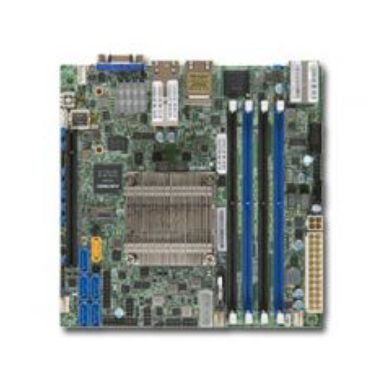

Supermicro Motherboard X10SDV-4C+-TLN4F (Retail)
Out of Stock
|
Call For Price (0808 189 1246)
Technical details
Trusted Platform Module (TPM)
Yes
Serial port headers
1
Parallel processing technology support
Not supported
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
Mini-ITX
Component for
Server
ECC supported by processor
Yes
Sustainability certificates
RoHS
Performance
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Motherboard form factor
Mini-ITX
Component for
Server
Processor
Processor manufacturer
Intel
ECC supported by processor
Yes
Intel Xeon series
D-1500
Processor socket
BGA 1667
Processor number of cores supported
4
Memory
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Memory voltage
1.2 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133 MHz
Supported UDIMM clock speeds
2133 MHz
Maximum internal memory
128 GB
Maximum RDIMM memory
128 GB
Maximum UDIMM memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
4
TPM connector
Yes
Serial port headers
1
Parallel connector
No
Number of SATA III connectors
6
Number of COM connectors
1
Number of chassis fan connectors
4
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
5
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I350
Ethernet interface type
10 Gigabit Ethernet
Features
Motherboard form factor
Mini-ITX
Component for
Server
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5
Processor special features
Trusted Platform Module (TPM)
Yes
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Weight & dimensions
Width
6.69" (170 mm)
Depth
6.69" (170 mm)
Supermicro Motherboard X10SDV-4C+-TLN4F (Retail)
| Length | 6.7 cm |
| Width | 6.7 cm |
| Weight | 1.00 kgs |
